C9,AL

Active

Serpac

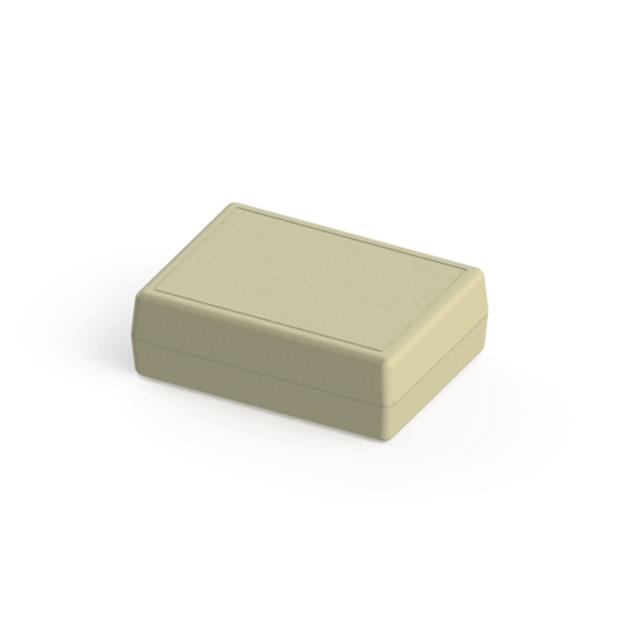

BOX ABS ALMOND 2.83"L X 2.08"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 2.83"L X 2.08"W

Technical Specifications

Parameters and characteristics for this part

Specification	C9,AL

Area (L x W)	38 cm²
Area (L x W)	5.89 in²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	23.62 mm
Height [z]	0.93 "
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	71.88 mm
Size / Dimension [x]	2.83 "
Size / Dimension [y]	52.83 mm
Size / Dimension [y]	2.08 in
Thickness	2.03 mm
Thickness	0.08 "
Weight	0.058 lb
Weight	26.31 g

Part	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Thickness	Thickness	Weight	Weight	Material	Ratings	Area (L x W)	Area (L x W)	Color	Design	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]
Serpac C9,GY	Box	71.88 mm	52.83 mm	2.08 in	2.83 "	23.62 mm	0.93 "	2.03 mm	0.08 "	0.058 lb	26.31 g	Plastic ABS	IP40	38 cm²	5.89 in²	Gray	Hand Held Split Sides	UL94 HB
Serpac C9,BK	Box	71.88 mm	52.83 mm	2.08 in	2.83 "	23.62 mm	0.93 "	2.03 mm	0.08 "	0.058 lb	26.31 g	Plastic ABS	IP40			Black	Hand Held Split Sides	UL94 HB	5.89 in˛	38 cm˛
Serpac C9,AL	Box	71.88 mm	52.83 mm	2.08 in	2.83 "	23.62 mm	0.93 "	2.03 mm	0.08 "	0.058 lb	26.31 g	Plastic ABS	IP40	38 cm²	5.89 in²	Almond	Hand Held Split Sides	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.43

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 2.830" L x 2.080" W (71.88mm x 52.83mm) X 0.930" (23.62mm)

Technical documentation and resources

No documents available
