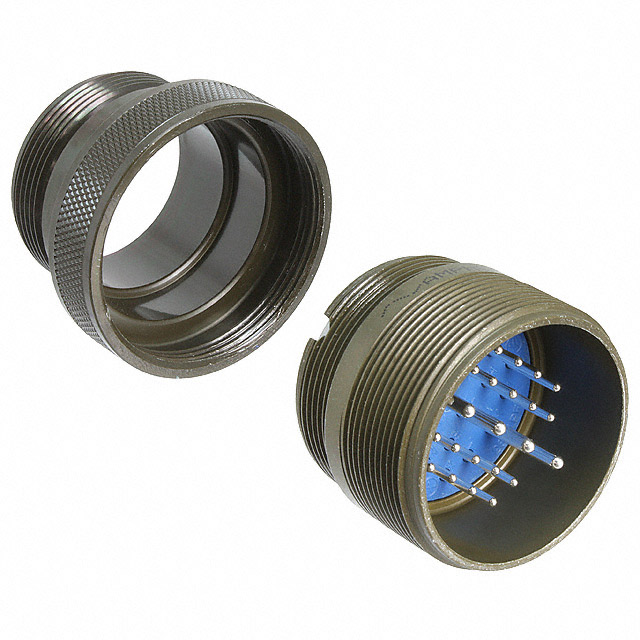

97-3101A-28-11P

Active

Amphenol Industrial Operations

CONN RCPT MALE 22P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 22P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	97-3101A-28-11P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	28-11
Shielding	Unshielded

Part	Applications	Mounting Type	Connector Type	Shell Finish	Contact Finish - Mating	Shell Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Features	Color	Shielding	Primary Material	Number of Positions	Contact Material	Insert Material	Shell Size - Insert
Amphenol Industrial Operations 97-3101A-28-15P	Automotive Industrial	Free Hanging (In-Line)	Male Pins Receptacle	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy	N	-55 °C	125 °C	28	15	Backshell	Olive Drab	Unshielded	Metal	35	Copper Alloy	Diallyl Phthalate (DAP)
Amphenol Industrial Operations 97-3101A-28-11P	Automotive Industrial	Free Hanging (In-Line)	Male Pins Receptacle	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy	N	-55 °C	125 °C			Backshell	Olive Drab	Unshielded	Metal	22 positions	Copper Alloy	Diallyl Phthalate (DAP)	28-11
Amphenol Industrial Operations 97-3101A-28-21P	Automotive Industrial	Free Hanging (In-Line)	Male Pins Receptacle	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy	N	-55 °C	125 °C	21	28	Backshell	Olive Drab	Unshielded	Metal	37	Copper Alloy	Diallyl Phthalate (DAP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Position Circular Connector Receptacle, Male Pins Solder Cup
