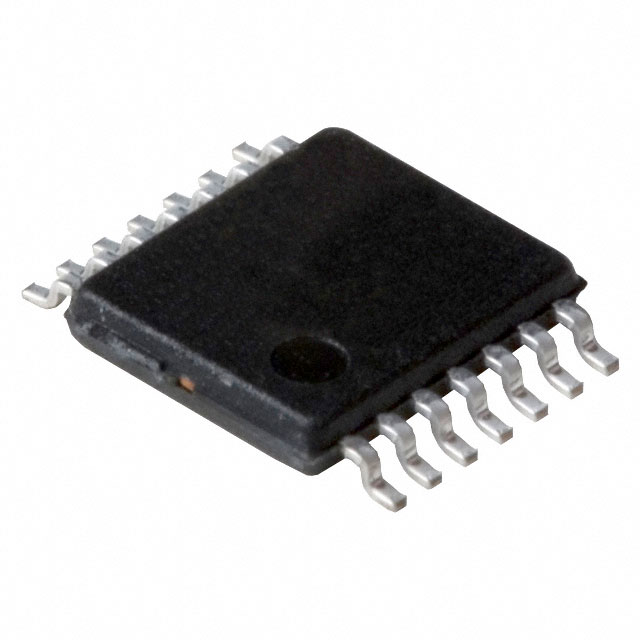

NJM2060V-TE1
ActiveNisshinbo Micro Devices Inc
IC OPAMP GP 4 CIRCUIT 14SSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJM2060V-TE1
ActiveNisshinbo Micro Devices Inc
IC OPAMP GP 4 CIRCUIT 14SSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM2060V-TE1 |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 40 nA |
| Current - Supply | 9 mA |
| Gain Bandwidth Product | 10 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Package / Case | 0.173 ", 4.4 mm |
| Package / Case | 14-LSSOP |
| Slew Rate | 4 V/µs |
| Supplier Device Package | 14-SSOP |
| Voltage - Input Offset | 500 çV |
| Voltage - Supply Span (Max) [Max] | 36 V |
| Voltage - Supply Span (Min) [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.41 | |
| 6000 | $ 0.39 | |||
| 10000 | $ 0.37 | |||
Description
General part information
NJM2060 Series
General Purpose Amplifier 4 Circuit 14-SSOP
