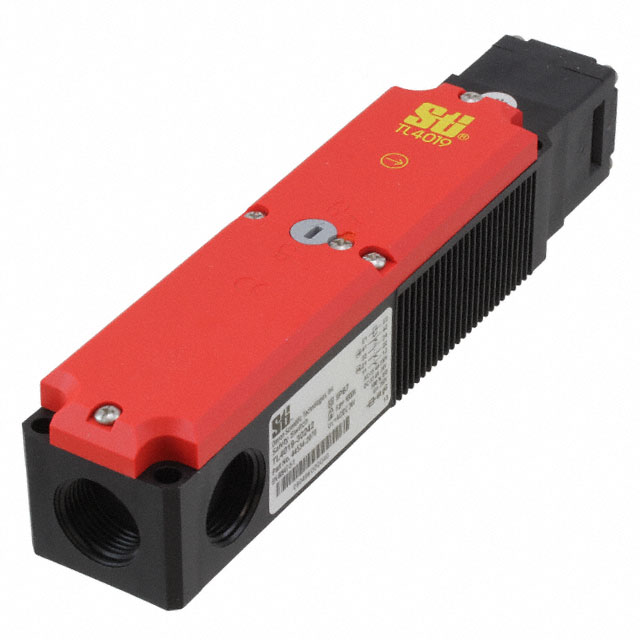

TL4019-30242

Active

Omron Electronics Inc-EMC Div

INTERLOCK SOLENOID RELEASE 4PST

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TL4019-30242

Active

Omron Electronics Inc-EMC Div

INTERLOCK SOLENOID RELEASE 4PST

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL4019-30242

Actuator Type	Panel Disconnect
Approval Agency	cULus, CE
Circuit	4PST-3NC/1NO (DB/DM)
Conduit Thread Size	M20 x3
Current Rating (Amps)	4 A
Holding Force	122 kgf
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Termination Style	Screw Terminal
Type	Solenoid Release
Voltage - Supply	24 VAC
Voltage Rating	230 VAC, 24 VDC

TL4019 Series

Part	Actuator Type	Holding Force	Circuit	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Voltage Rating	Ingress Protection	Type	Termination Style	Conduit Thread Size	Current Rating (Amps)
Omron Electronics Inc-EMC Div TL4019-50241TM	Panel Disconnect	122 kgf	3PST-2NC/1NO	CE cULus	55 °C	-20 C	24 VAC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Release	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-40243SM	Panel Disconnect	122 kgf	4PST-3NC/1NO (DB/DM)	CE cULus	55 °C	-20 C	24 VAC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Locking	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-20241F1M	Panel Disconnect	122 kgf	4PST-2NO/2NC	CE cULus	55 °C	-20 C	24 VAC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Locking	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-30242	Panel Disconnect	122 kgf	4PST-3NC/1NO (DB/DM)	CE cULus	55 °C	-20 C	24 VAC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Release	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-31101F2M	Panel Disconnect	122 kgf	4PST-2NO/2NC (DB/DM)	CE cULus	55 °C	-20 C	110 VAC/DC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Release	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-40243TM	Panel Disconnect	122 kgf	4PST-3NC/1NO (DB/DM)	CE cULus	55 °C	-20 C	24 VAC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Locking	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-31102SKM	Panel Disconnect	122 kgf	4PST-3NC/1NO	CE cULus	55 °C	-20 C	110 VAC/DC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Release	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-11101F2M	Panel Disconnect	122 kgf	4PST-2NO/2NC	CE cULus	55 °C	-20 C	110 VAC/DC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Release	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-31102F1M	Panel Disconnect	122 kgf	4PST-3NC/1NO (DB/DM)	CE cULus	55 °C	-20 C	110 VAC/DC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Release	Screw Terminal	M20 x3	4 A
Omron Electronics Inc-EMC Div TL4019-40241RR	Panel Disconnect	122 kgf	4PST-2NO/2NC (DB/DM)	CE cULus	55 °C	-20 C	24 VAC	24 VDC 230 VAC	IP67 - Dust Tight Waterproof	Solenoid Locking	Screw Terminal	M20 x3	4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 502.94
		5	$ 438.91
		10	$ 413.82
		25	$ 382.76

Description

General part information

TL4019 Series

INTERLOCK SOLENOID RELEASE 4PST

Documents

Technical documentation and resources
