NL17SV08XV5T2

Obsolete

ON Semiconductor

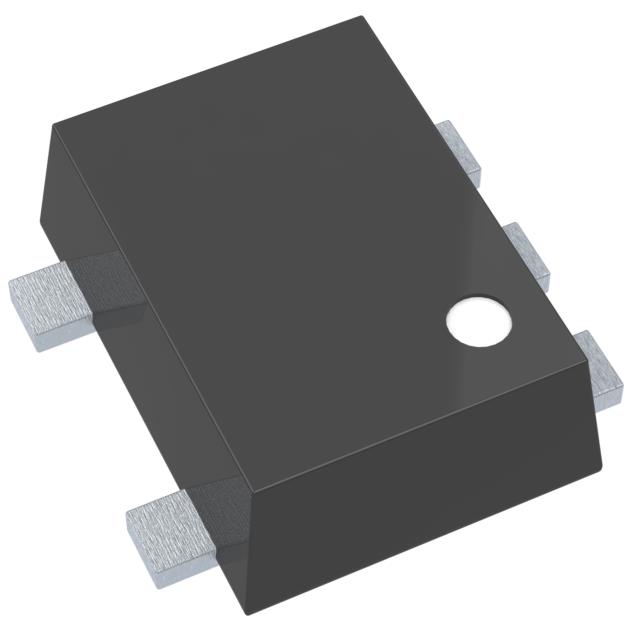

IC GATE AND 1CH 2-INP SOT553

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC GATE AND 1CH 2-INP SOT553

Technical Specifications

Parameters and characteristics for this part

Specification	NL17SV08XV5T2

Current - Output High, Low	24 mA
Current - Quiescent (Max) [Max]	900 nA
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.6 V
Input Logic Level - Low [Max]	0.8 V
Input Logic Level - Low [Min]	0.7 V
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	2.3 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	SOT-553
Supplier Device Package	SOT-553
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.9 V

Part	Number of Inputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Max Propagation Delay @ V, Max CL	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Current - Quiescent (Max) [Max]	Number of Circuits	Logic Type	Package / Case	Mounting Type	Current - Output High, Low	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]
ON Semiconductor NL17SV08XV5T2	2	85 °C	-40 °C	3.6 V	0.9 V	SOT-553	2.3 ns	2 V	1.6 V	900 nA	1	AND Gate	SOT-553	Surface Mount	24 mA	0.8 V	0.7 V
