2249C SL002

Active

ALPHA WIRE

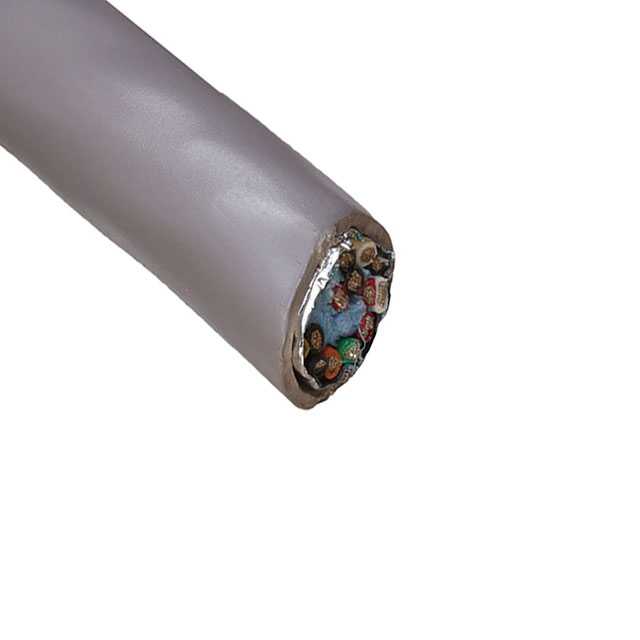

CABLE 9COND 18AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 9COND 18AWG SLATE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	2249C SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.585 "
Jacket (Insulation) Diameter [diameter]	14.86 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.397 mm
Jacket (Insulation) Thickness	0.055 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Jacket Color	Conductor Material	Length	Length	Cable Type	Jacket (Insulation) Material	Shield Type	Voltage	Usage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Shield Coverage	Wire Gauge	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
ALPHA WIRE 2249C SL001	1.397 mm	0.055 in	Drain Wire	Slate	Copper Tinned	1000 ft	304.8 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Foil	300 V	Communication Control	Poly-Vinyl Chloride (PVC)	0.585 "	14.86 mm	Aluminum	100 %	18 AWG	9	16	30 AWG	-20 C	80 C
ALPHA WIRE 2249C SL002	1.397 mm	0.055 in	Drain Wire	Slate	Copper Tinned			Multi-Conductor	Poly-Vinyl Chloride (PVC)	Foil	300 V	Communication Control	Poly-Vinyl Chloride (PVC)	0.585 "	14.86 mm	Aluminum	100 %	18 AWG	9	16	30 AWG	-20 C	80 C	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.64

General part information

9 Conductor Multi-Conductor Cable Slate 18 AWG Foil 500.0' (152.4m)
