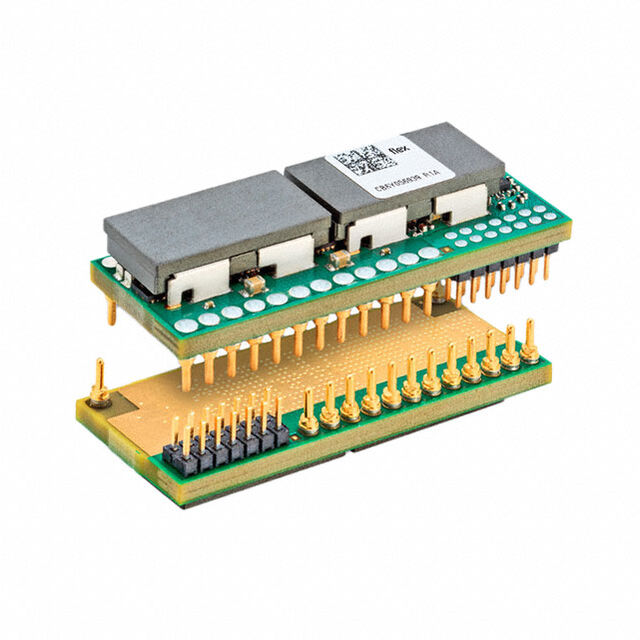

BMR4672010/001

Active

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 216W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 216W

Technical Specifications

Parameters and characteristics for this part

Specification	BMR4672010/001

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active High, Enable
Current - Output (Max) [Max]	120 A
Efficiency	93.2 %
Features	PMBus™, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Package / Case	26-SIP Module
Power (Watts)	216 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	8.2 mm
Size / Dimension [y]	0.32 in
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.1 mm
Standard Number	62368-1
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	7.5 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.6 V

Part	Voltage - Input (Min) [Min]	Power (Watts)	Package / Case	Features	Mounting Type	Approval Agency	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Applications	Control Features	Standard Number	Number of Outputs	Efficiency	Type
Flex Power Modules BMR4671010/001	7.5 V	216 W	28-SMD Module	Adjustable Output PMBus™ Remote Sense	Surface Mount	CB CSA IEC TUV UL	120 A	1.8 V	0.6 V	0.75 in	10.8 mm	0.43 "	19.1 mm	2 in	50.8 mm	125 °C	-45 °C	14 V	ITE (Commercial)	Active High Enable	62368-1	1	93.2 %	Non-Isolated PoL Module Digital
Flex Power Modules BMR4672010/001	7.5 V	216 W	26-SIP Module	Adjustable Output PMBus™ Remote Sense	Through Hole	CB CSA IEC TUV UL	120 A	1.8 V	0.6 V	0.32 in	19.1 mm	0.75 in	8.2 mm	2 in	50.8 mm	125 °C	-45 °C	14 V	ITE (Commercial)	Active High Enable	62368-1	1	93.2 %	Non-Isolated PoL Module Digital

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 120A 7.5V - 14V Input
