2176075-7

Obsolete

TE Connectivity Passive Product

FIXED IND 0.7NH 300MA 300MOHM SM

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

FIXED IND 0.7NH 300MA 300MOHM SM

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Frequency - Self Resonant	Inductance Frequency - Test	Shielding	DC Resistance (DCR) [Max]	Q @ Freq	Supplier Device Package	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Inductance	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TE Connectivity Passive Product 5-2176075-1	2 %	2 GHz	500 MHz	Unshielded	3.5 Ohm	8 500 MHz	0201	0603 Metric	0201	0.3 mm	0.6 mm	0.024 "	0.012 "	Thin Film	10 nH	Surface Mount	80 mA	0.28 mm	0.011 "
TE Connectivity Passive Product 2176075-7	0.2 nH	9 GHz	500 MHz	Unshielded	300 mOhm	8 500 MHz	0201	0603 Metric	0201	0.3 mm	0.6 mm	0.024 "	0.012 "	Thin Film		Surface Mount	300 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

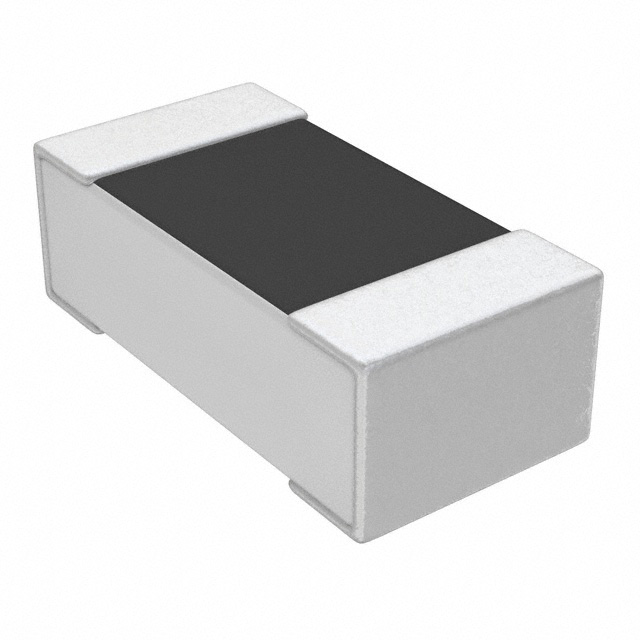

0.7 nH Unshielded Thin Film Inductor 300 mA 300mOhm Max 0201 (0603 Metric)
