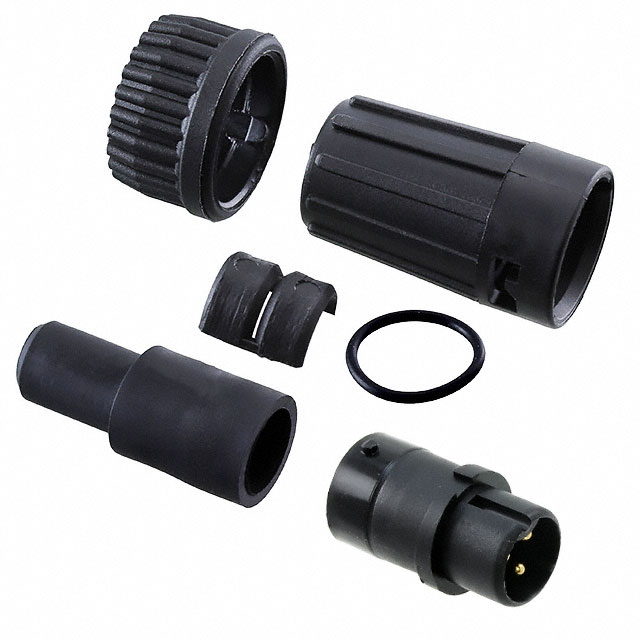

6282-3PG-519

Active

Conxall/Switchcraft

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-3PG-519

Active

Conxall/Switchcraft

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6282-3PG-519

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.21 in
Cable Opening [Max] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.19 in
Cable Opening [Min] [diameter]	4.83 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

6282-3PG Series

Part	Shielding	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Color	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Voltage Rating	Current Rating (Amps)	Mounting Type	Contact Material	Connector Type	Ingress Protection	Backshell Material, Plating	Orientation	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6282-3PG-522	Unshielded	Bayonet Lock	Backshell	-40 °C	115 °C	Automotive Communication Systems Instrumentation	Black	Gold	6.35 mm	0.25 in	0.22 in	5.59 mm	600 V	Varies by Wire Gauge	Free Hanging (In-Line)	Brass	Male Pins Plug	Weathertight	Nylon Polyamide (PA)	Keyed	Plastic
Conxall/Switchcraft 6282-3PG-513	Unshielded	Bayonet Lock	Backshell	-40 °C	115 °C	Automotive Communication Systems Instrumentation	Black	Gold					600 V	Varies by Wire Gauge	Free Hanging (In-Line)	Brass	Male Pins Plug	Weathertight	Nylon Polyamide (PA)	Keyed	Plastic	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6282-3PG-519	Unshielded	Bayonet Lock	Backshell	-40 °C	115 °C	Automotive Communication Systems Instrumentation	Black	Gold	5.33 mm	0.21 in	0.19 in	4.83 mm	600 V	Varies by Wire Gauge	Free Hanging (In-Line)	Brass	Male Pins Plug	Weathertight	Nylon Polyamide (PA)	Keyed	Plastic
Conxall/Switchcraft 6282-3PG-318	Unshielded	Bayonet Lock	Backshell	-40 °C	115 °C	Automotive Communication Systems Instrumentation	Black	Gold					600 V	Varies by Wire Gauge	Free Hanging (In-Line)	Brass	Male Pins Plug	Weathertight	Nylon Polyamide (PA)	Keyed	Plastic			4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6282-3PG-315	Unshielded	Bayonet Lock	Backshell	-40 °C	115 °C	Automotive Communication Systems Instrumentation	Black	Gold					600 V	Varies by Wire Gauge	Free Hanging (In-Line)	Brass	Male Pins Plug	Weathertight	Nylon Polyamide (PA)	Keyed	Plastic	0.15 in 0.17 in	3.81 mm 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.11
		10	$ 9.10
		25	$ 8.57
		50	$ 8.35
		100	$ 8.13
		300	$ 7.25
		500	$ 6.81
		1000	$ 6.02

Description

General part information

6282-3PG Series

3 Position Circular Connector Plug, Male Pins Solder Cup
