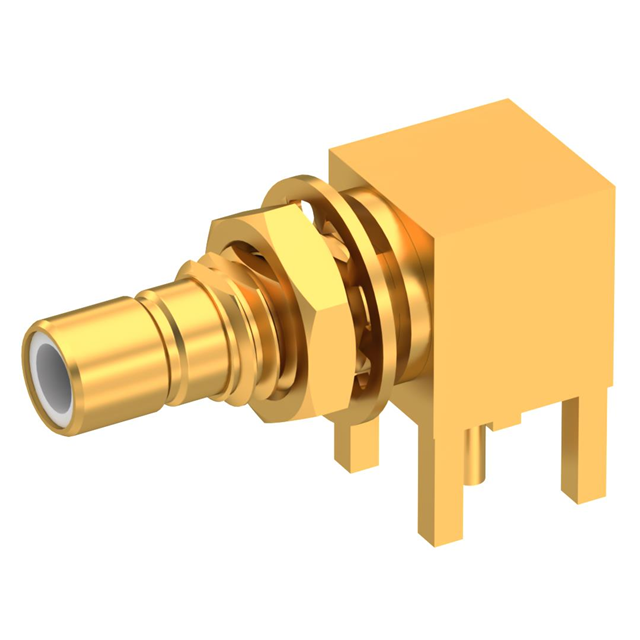

2110-1511-000

Active

Radiall USA, Inc.

SMB M RA BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB M RA BHD

Technical Specifications

Parameters and characteristics for this part

Specification	2110-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Material	Number of Ports	Mating Cycles	Center Contact Material	Mounting Feature	Mounting Type	Fastening Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Includes	Contact Termination	Dielectric Material	Housing Color	Impedance	Connector Type	Center Contact Plating	Body Finish	Frequency - Max [Max]
Radiall USA, Inc. 2110-1511-000	Brass	1	500	Brass	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	Snap-On	Solder	-65 ░C	165 °C	SMB	1 Connector 1 Lockwasher 1 Nut	Solder	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Jack Male Pin	Gold	Gold	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole, Right Angle Solder
