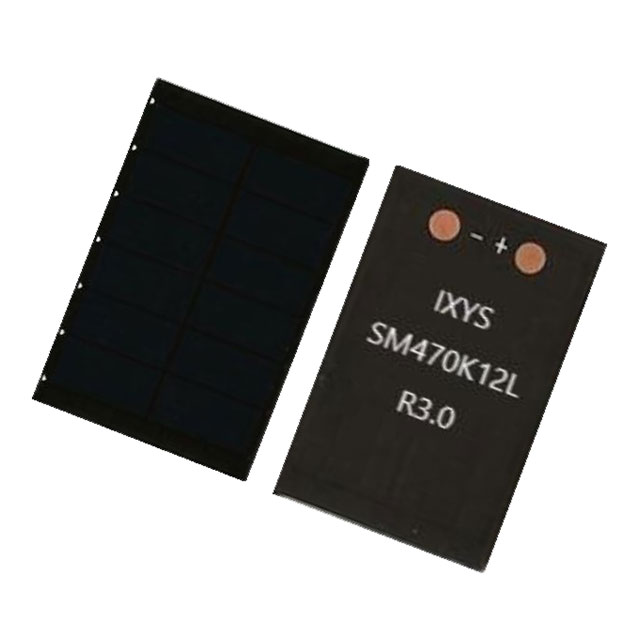

SM470K12L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 123MW 8.29V
Deep-Dive with AI
Search across all available documentation for this part.
SM470K12L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 123MW 8.29V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM470K12L |
|---|---|
| Current - Short Circuit (Isc) | 19.5 mA |
| Current @ Pmpp | 18.3 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 123 mW |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [z] | 2 mm |
| Size / Dimension [z] | 0.08 in |
| Type | Monocrystalline |
| Voltage - Open Circuit | 8.29 V |
| Voltage @ Pmpp | 6.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 3.91 | |
Description
General part information
SM470 Series
Monocrystalline Solar Cell 123 mW 8.29 V
Documents
Technical documentation and resources
No documents available
