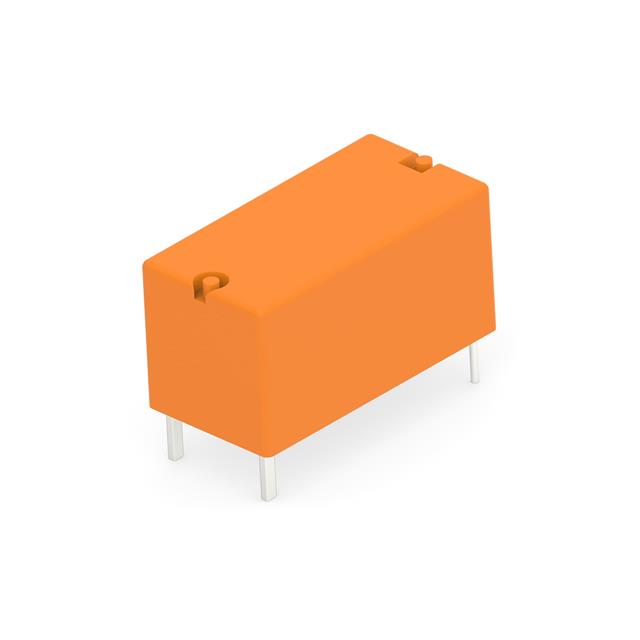

5-1415390-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 5A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Release Time	Must Operate Voltage	Switching Voltage [Max]	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Load - Max Switching	Contact Material	Contact Form	Coil Current	Coil Voltage	Coil Resistance	Mounting Type	Operate Time	Coil Type	Seal Rating	Termination Style
TE Connectivity Potter & Brumfield Relays PE014F05	cURus VDE	8 ms	3.75 VDC	400 VAC	General Purpose	85 °C	-40 °C	5 A	2000 VA	Silver Nickel (AgNi)	SPDT (1 Form C)	40 mA	5 VDC	125 Ohms	Through Hole	8 ms	Latching Single Coil	Sealed - Flux Protection	PC Pin
TE Connectivity Potter & Brumfield Relays 2-1415390-1	cURus VDE	8 ms	4.5 VDC	400 VAC	General Purpose	85 °C	-40 °C	5 A	2000 VA	Silver Nickel (AgNi)	SPDT (1 Form C)	33.3 mA		180 Ohms	Through Hole	8 ms	Latching Single Coil	Sealed - Flux Protection	PC Pin
TE Connectivity Potter & Brumfield Relays 9-1415390-1	cURus VDE	8 ms	3.8 VDC	400 VAC	General Purpose	85 °C	-40 °C	5 A	2000 VA	Silver Nickel (AgNi)	SPDT (1 Form C)	40 mA	5 VDC	125 Ohms	Through Hole	8 ms	Non Latching		PC Pin
TE Connectivity Potter & Brumfield Relays 5-1415390-1	cURus VDE	8 ms	18 VDC	400 VAC	General Purpose	85 °C	-40 °C	5 A	2000 VA	Silver Nickel (AgNi)	SPDT (1 Form C)	8.7 mA	24 VDC	2.75 kOhms	Through Hole	8 ms	Latching Single Coil	Sealed - Flux Protection	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 4.86

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
