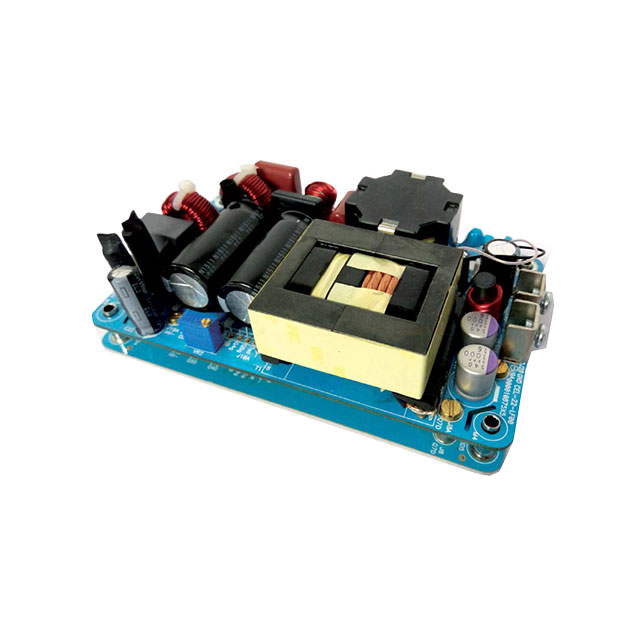

ABC550-1T15

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 15V 150/550W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 15V 150/550W

Technical Specifications

Parameters and characteristics for this part

Specification	ABC550-1T15

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	7.33 A
Efficiency	90 %
Features	Standby Output, Universal Input, PFC, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	550 W
Power (Watts)	150 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Power (Watts)	Power (Watts)	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Type	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Approval Agency	Current - Output 1	Efficiency	Voltage - Output 1
EOS Power India Private Ltd ABC550-1T58	550 W	150 W	Chassis Mount	90 VAC	264 VAC	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	ITE (Commercial)	Open Frame	1	DC Input Capable PFC Standby Output Universal Input	-40 °C	70 °C	3000 V	CE	2.59 A
EOS Power India Private Ltd ABC550-1T48	550 W	150 W	Chassis Mount	90 VAC	264 VAC	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	ITE (Commercial)	Open Frame	1	DC Input Capable PFC Standby Output Universal Input	-40 °C	70 °C	3000 V	CE	3.13 A	92 %	48 V
EOS Power India Private Ltd ABC550-1T15	550 W	150 W	Chassis Mount	90 VAC	264 VAC	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	ITE (Commercial)	Open Frame	1	DC Input Capable PFC Standby Output Universal Input	-40 °C	70 °C	3000 V	CE	7.33 A	90 %	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
