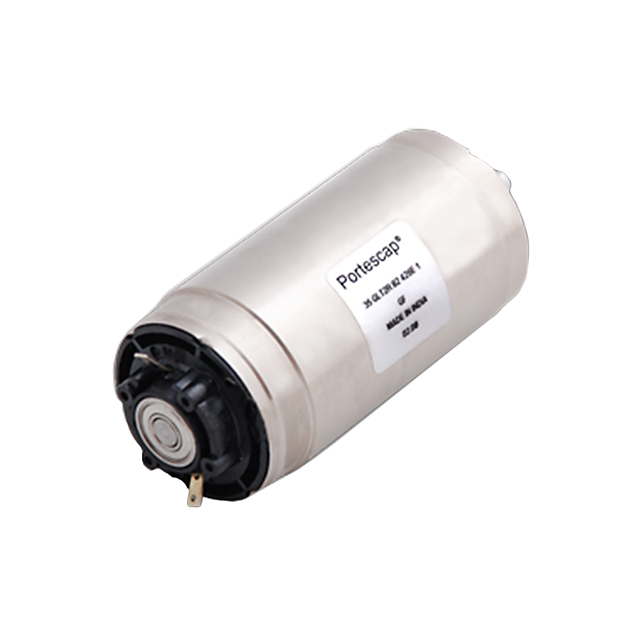

30GT2R82-234E.4
ActivePortescap
STANDARD MOTOR 10000 RPM 35V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 30GT2R82-234E.4 |
|---|---|
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 12.5 mm |
| Length - Shaft and Bearing [x] | 0.492 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 20 mm |
| Mounting Hole Spacing | 0.787 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 82 W |
| RPM | 10000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 1.181 inches |
| Size / Dimension [diameter] | 30 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 847 mNm |
| Torque - Rated (oz-in / mNm) | 120 oz-in |
| Type | DC Motor |
| Voltage - Rated | 35 V |
| Weight | 310.26 g |
| Weight | 0.684 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 327.16 | |
Description
General part information
30GT2R82 Series
Brushed DC Motor Standard 10000 RPM 82W 35VDC
