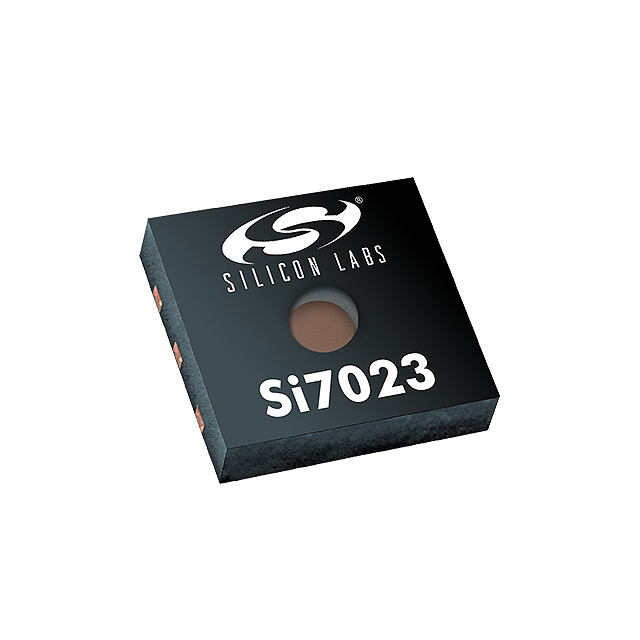

SI7023-A20-IM1R

Silicon Labs

SENS HUMID/TEMP 3.6V PWM 3% 6DFN

Search across all available documentation for this part.

Silicon Labs

SENS HUMID/TEMP 3.6V PWM 3% 6DFN

Technical Specifications

Parameters and characteristics for this part

Part	Humidity Range [Min]	Humidity Range [Max]	Accuracy	Output	Mounting Type	Sensor Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Response Time
Silicon Labs SI7023-A20-YM1	0 % RH	100 % RH	2 %	11b	Surface Mount	Humidity Temperature	6-DFN (3x3)	3.6 V	1.9 V	125 °C	-40 °C	6 s
Silicon Labs SI7023-A20-YM1R	0 % RH	100 % RH	2 %	11b	Surface Mount	Humidity Temperature	6-DFN (3x3)	3.6 V	1.9 V	125 °C	-40 °C	6 s
Silicon Labs SI7023-A20-IM1R	0 % RH	100 % RH	2 %	11b	Surface Mount	Humidity Temperature	6-DFN (3x3)	3.6 V	1.9 V	125 °C	-40 °C	18 s
Silicon Labs SI7023-A20-IM	0 % RH	100 % RH	2 %	11b	Surface Mount	Humidity Temperature	6-DFN (3x3)	3.6 V	1.9 V	125 °C	-40 °C	18 s

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 6.00

General part information

Humidity, Temperature 0 ~ 100% RH PWM ±2% RH 18 s Surface Mount
