BH3B-XH-2

Active

JST Sales America Inc.

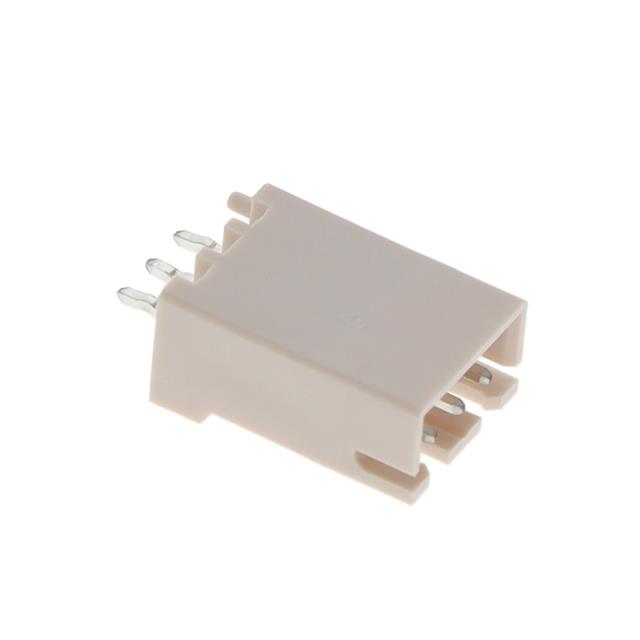

CONN HEADER VERT 3POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BH3B-XH-2

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	9.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Termination	Contact Type	Insulation Material	Style	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Finish - Post	Insulation Color	Contact Material	Contact Shape	Connector Type	Fastening Type	Material Flammability Rating	Number of Positions Loaded
JST Sales America Inc. BH3B-XH-2	9.8 mm	7 mm	0.276 in	250 VDC	-25 °C	85 °C	3 A	Through Hole	Press-Fit Solder	Male Pin	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	1	2.5 mm	0.098 in	0.134 in	3.4 mm	Shrouded - 4 Wall	Tin	Natural	Brass	Square	Header	Detent Lock	UL94 V-0	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.098" (2.50mm)
