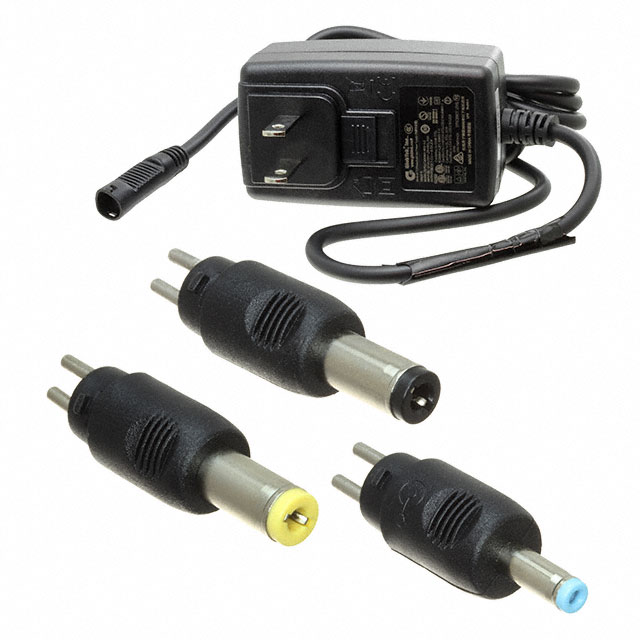

WR9QB3000T00NAIMR6B

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPTER 5.95V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPTER 5.95V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QB3000T00NAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	60601-1-2, 61558-1, 60335-1, 60601-1-11, 1310, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5.95 V

Part	Efficiency	Input Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts)	Form	Output Connector	Standard Number	No Load Power Consumption [Max]	Voltage - Output	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Applications	Cord Length	Cord Length
GlobTek, Inc. WR9QB3000T00NAIMR6B	Level VI	Multi-Blade	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Multi-Blade (Sold Separately)	90 VAC	264 VAC	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	18 W	Wall Mount (Class II)	1.3mm x 3.5mm Barrel Plug Kit	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	75 mW	5.95 V	3 A	-20 C	40 °C	International	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5.95V 18 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
