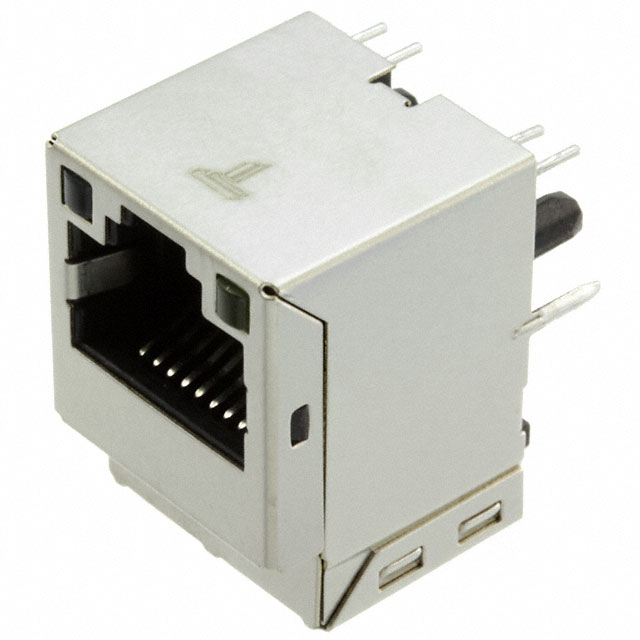

1840419-3
ActiveTRP Connector B.V.
CONN JACK 1PORT 100 BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1840419-3
ActiveTRP Connector B.V.
CONN JACK 1PORT 100 BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1840419-3 |
|---|---|
| Applications | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Height Above Board [z] | 16.51 mm |
| Height Above Board [z] | 0.65 " |
| Housing Material | Thermoplastic |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | Vertical |
| Shield Material | Brass |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.64 | |
| 10 | $ 7.81 | |||
| 10 | $ 6.90 | |||
| 25 | $ 6.52 | |||
| 40 | $ 6.36 | |||
| 200 | $ 6.04 | |||
| 400 | $ 5.41 | |||
| 600 | $ 5.09 | |||
| 1000 | $ 4.45 | |||
Description
General part information
1840419 Series
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Documents
Technical documentation and resources
