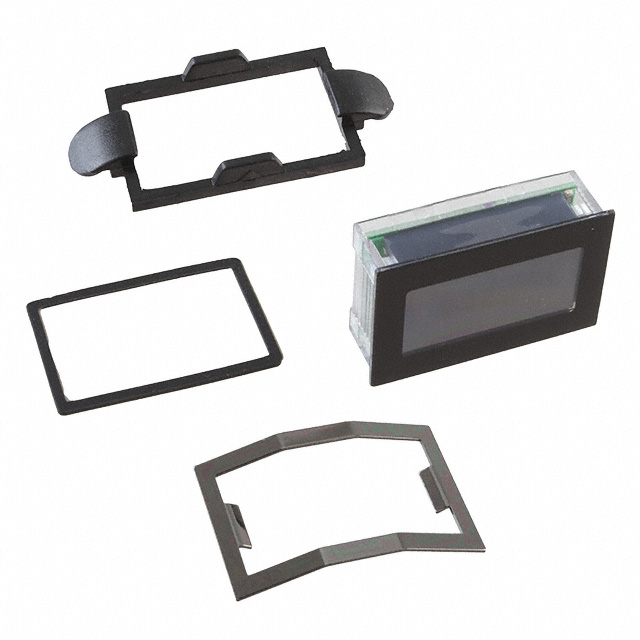

SP 400-EB-W

Obsolete

Lascar Electronics

SPLASH-PROOF LCD VOLTMETER

Search across all available documentation for this part.

Obsolete

Lascar Electronics

SPLASH-PROOF LCD VOLTMETER

Technical Specifications

Parameters and characteristics for this part

Specification	SP 400-EB-W

Display Characters - Height [z]	9.75 mm
Display Characters - Height [z]	0.384 in
Display Type	LCD, White Characters, Backlight
Measuring Range [Max]	0.2 VDC
Measuring Range [Min]	-200 mV
Measuring Type	Voltage
Number of Characters Per Row	3.5
Output Type	Reference
Panel Cutout Dimensions [x]	34 mm
Panel Cutout Dimensions [y]	21.3 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply [Max]	7.5 V
Voltage - Supply [Min]	4.75 V

Part	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Measuring Range [Min]	Measuring Range [Max]	Output Type	Display Type	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters Per Row	Measuring Type
Lascar Electronics SP 400-EB-W	9.75 mm	0.384 in	PC Pin	34 mm	21.3 mm	-200 mV	0.2 VDC	Reference	Backlight LCD White Characters	Voltmeter	7.5 V	4.75 V	3.5	Voltage
Lascar Electronics SP 400-BLUE	9.75 mm	0.384 in	PC Pin	34 mm	21.3 mm	-200 mV	0.2 VDC	Reference		Voltmeter	7.5 V	3 V	3.5	Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltmeter LCD - White Characters, Backlight Display Panel Mount
