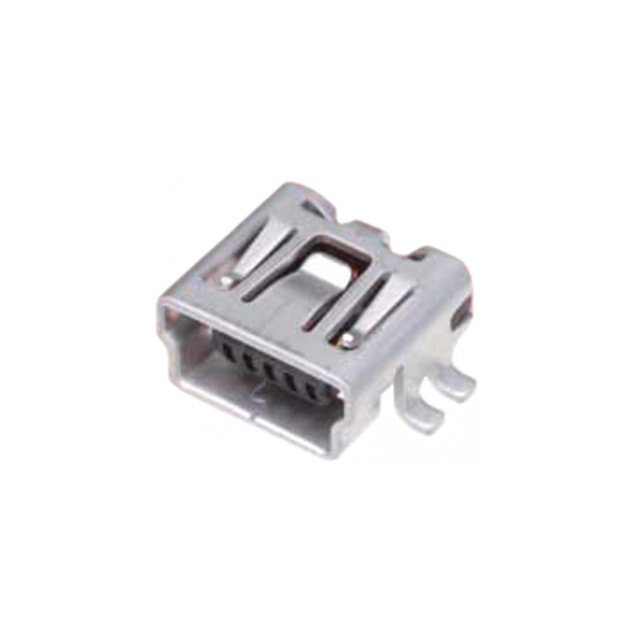

UX60SC-MB-5ST(85)

Active

Hirose Electric USA, Inc.

CONN RCPT USB2.0 MINI B SMD R/A

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT USB2.0 MINI B SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	UX60SC-MB-5ST(85)

Connector Type	USB - mini B
Contact Finish	Gold
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Shielding	Specifications	Number of Contacts	Voltage - Rated	Contact Finish	Mounting Type	Mating Cycles	Number of Ports	Connector Type	Features	Insulation Color	Material Flammability Rating	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Shell/Shielding Material	Termination	Mounting Feature
Hirose Electric USA, Inc. UX60SC-MB-5ST(85)	Shielded	USB 2.0	5	30 VAC	Gold	Surface Mount Right Angle	5000	1	USB - mini B	Solder Retention	Black	UL94 V-0	Receptacle	-30 ░C	75 ░C	Copper Alloy	Solder	Horizontal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 0.42

General part information

USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle

Technical documentation and resources
