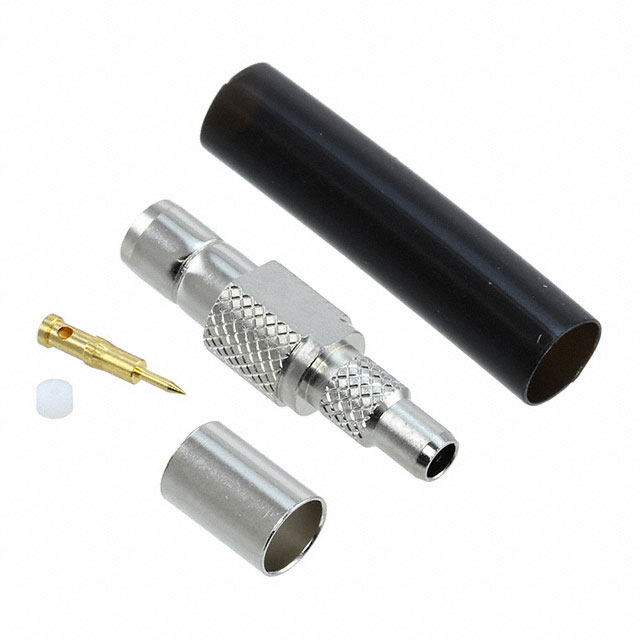

UM-QJ-1.5VCR3A(40)

Active

Hirose Electric USA, Inc.

CONN UMC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN UMC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	UM-QJ-1.5VCR3A(40)

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	U.FL (UMCC)
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Crimp

Part	Impedance	Body Finish	Number of Ports	Contact Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Style	Dielectric Material	Frequency - Max [Max]	Mating Cycles	Center Contact Material	Center Contact Plating	Shield Termination	Fastening Type	Body Material	Mounting Type	Connector Type	Includes
Hirose Electric USA, Inc. UM-QJ-1.5VCR3A(41)	50 Ohms	Nickel	1	Solder	1.5D-2V	-30 ░C	85 °C	Silver	U.FL (UMCC)	Polytetrafluoroethylene (PTFE)	3 GHz	500	Brass	Gold	Crimp	Snap-On	Brass	Free Hanging (In-Line)	Jack Male Pin
Hirose Electric USA, Inc. UM-QJ-1.5VCR3A(40)	50 Ohms	Nickel	1	Solder		-30 ░C	85 °C	Silver	U.FL (UMCC)	Polytetrafluoroethylene (PTFE)	2 GHz	1000	Brass	Gold	Crimp	Snap-On	Brass	Free Hanging (In-Line)	Jack Male Pin	1 Heat Shrink 2 pcs - 1 Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

U.FL (UMCC) Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
