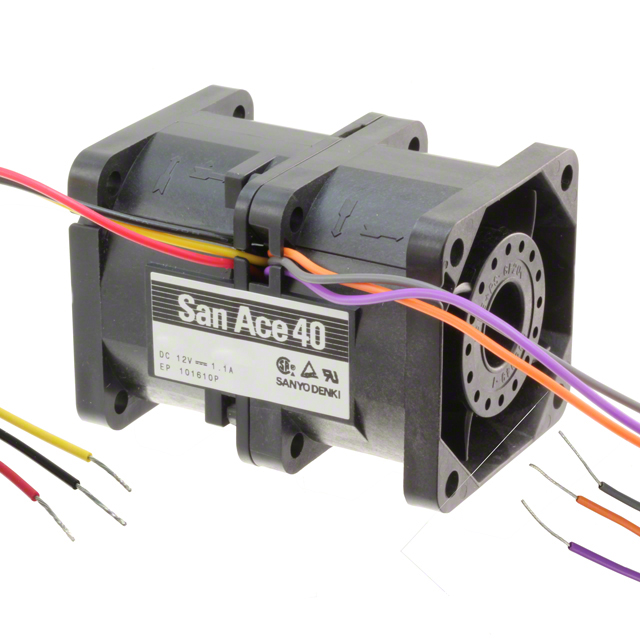

9CR0412S501

Active

Sanyo Denki America Inc.

FAN AXIAL DUAL 40X56MM 12VDC

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL DUAL 40X56MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	9CR0412S501

Bearing Type	Ball
Current Rating (Amps)	1.1 A
Fan Type	Tubeaxial (Dual)
Features	Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	57.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	13.2 W
RPM [custom]	15800 RPM
RPM [custom]	10600 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	3 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	90.26 g
Weight	0.199 lb
Width [x]	56 mm

Part	Material - Blade	Weight	Weight	Termination	Fan Type	Current Rating (Amps)	Bearing Type	RPM [custom]	RPM [custom]	Noise	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [x]	Material - Frame	Features	Power (Watts)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]
Sanyo Denki America Inc. 9CR0412H5D01	Plastic	90.26 g	0.199 lb	3 Wire Leads per Fan	Tubeaxial (Dual)	0.72 A	Ball	9300 RPM	13300 RPM	54 dB	12 VDC	13.2 VDC	10.8 VDC	-10 °C	-10 °C	60 °C	60 °C	56 mm	Plastic	Counter-Rotating Locked Rotor Sensor	8.64 W	40 mm	Square	40 mm
Sanyo Denki America Inc. 9CR0412H502	Plastic	90.26 g	0.199 lb	2 Wire Leads per Fan	Tubeaxial (Dual)	0.72 A	Ball	9300 RPM	13300 RPM	54 dB	12 VDC	13.2 VDC	10.8 VDC	-10 °C	-10 °C	60 °C	60 °C	56 mm	Plastic	Counter-Rotating	8.64 W	40 mm	Square	40 mm
Sanyo Denki America Inc. 9CR0412S501	Plastic	90.26 g	0.199 lb	3 Wire Leads per Fan	Tubeaxial (Dual)	1.1 A	Ball	10600 RPM	15800 RPM	57.5 dB	12 VDC	13.2 VDC	10.8 VDC	-10 °C	-10 °C	60 °C	60 °C	56 mm	Plastic	Counter-Rotating Locked Rotor Protection Speed Sensor (Tach)	13.2 W	40 mm	Square	40 mm
