M85049/79-11Z03

Active

AMPHENOL PCD

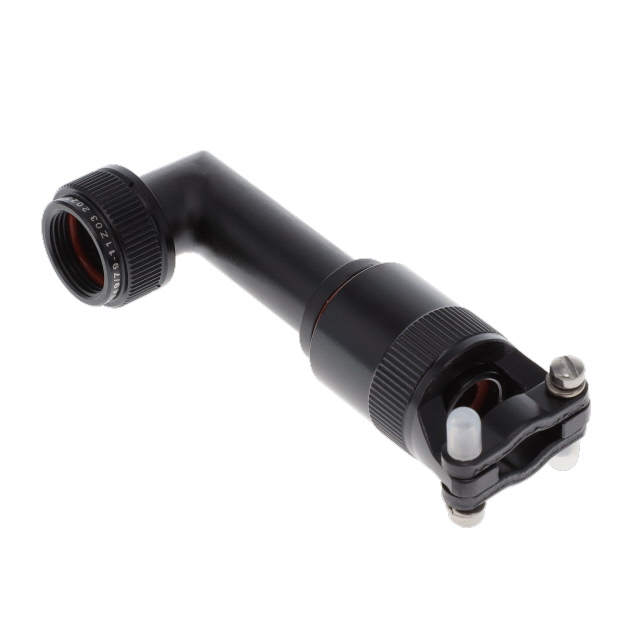

CONN BACKSHELL W/CLMP SZ11 B BLK

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN BACKSHELL W/CLMP SZ11 B BLK

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/79-11Z03

Cable Exit	90 °
Cable Opening [custom]	6.35 mm
Cable Opening [custom]	0.25 in
Color	Black
Diameter - Outside [diameter]	21.59 mm
Diameter - Outside [diameter]	0.85 in
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Zinc Cobalt
Shell Size - Insert	B
Shell Size - Insert	11
Shielding	Shielded
Type	Backshell, Cable Clamp

Part	Features	For Use With/Related Products	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Ingress Protection	Plating	Color	Type	Cable Exit	Material	Shielding	Shell Size - Insert	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [diameter]
AMPHENOL PCD M85049/79-13Z04	Clamp Screws	MIL-DTL-38999 Series III IV	1 in	25.4 mm	Environment Resistant	Zinc Cobalt	Black	Backshell Cable Clamp	90 °	Aluminum Alloy	Shielded	C	13	9.65 mm 12.7 mm	0.38 in 0.5 in
AMPHENOL PCD M85049/79-11W02	Clamp Screws	MIL-DTL-38999 Series III IV	0.85 in	21.59 mm	Environment Resistant	Cadmium	Olive Drab	Backshell Cable Clamp	90 °	Aluminum Alloy	Shielded	B	11			0.25 in	6.35 mm	0.125 in	3.18 mm
AMPHENOL PCD M85049/79-19Z06	Clamp Screws	MIL-DTL-38999 Series III IV	1.4 in	35.56 mm	Environment Resistant	Zinc Cobalt	Black	Backshell Cable Clamp	90 °	Aluminum Alloy	Shielded	F	19							0.75 in	0.63 in	19.05 mm	16 mm
AMPHENOL PCD M85049/79-25Z08	Clamp Screws	MIL-DTL-38999 Series III IV	1.85 "	46.99 mm	Environment Resistant	Zinc Cobalt	Black	Backshell Cable Clamp	90 °	Aluminum Alloy	Shielded	J	25			1 in		0.88 in	22.35 mm					25.4 mm
AMPHENOL PCD M85049/79-11Z03	Clamp Screws	MIL-DTL-38999 Series III IV	0.85 in	21.59 mm	Environment Resistant	Zinc Cobalt	Black	Backshell Cable Clamp	90 °	Aluminum Alloy	Shielded	B	11	6.35 mm	0.25 in
