3314R-1-501E

Active

Bourns Inc.

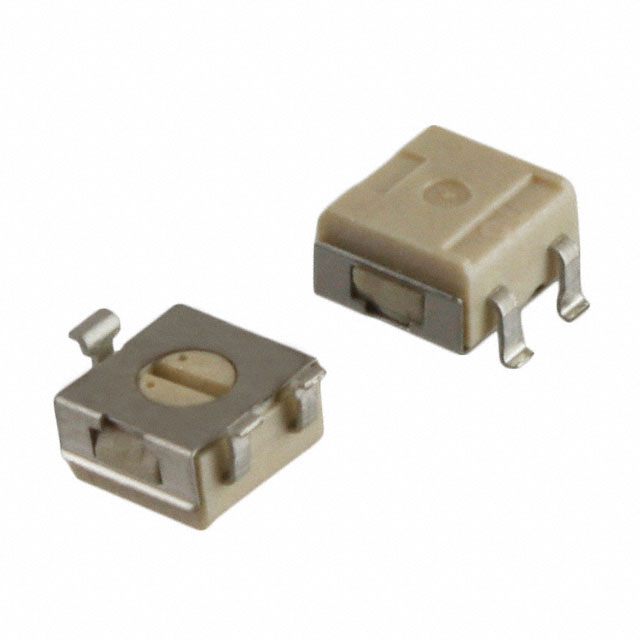

TRIMMER 500 OHM 0.25W GW BOT ADJ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3314R-1-501E

Active

Bourns Inc.

TRIMMER 500 OHM 0.25W GW BOT ADJ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3314R-1-501E

Adjustment Type	Bottom Adjustment
Mounting Type	Surface Mount
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	500 Ohms
Resistive Material	Cermet
Size / Dimension [x]	4.5 mm
Size / Dimension [x]	0.177 in
Size / Dimension [y]	0.177 "
Size / Dimension [y]	4.5 mm
Temperature Coefficient	100 ppm/°C
Termination Style	Gull Wing
Tolerance	20 %

3314R Series

Part	Power (Watts)	Power (Watts)	Adjustment Type	Resistive Material	Mounting Type	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination Style	Tolerance	Number of Turns	Resistance
Bourns Inc. 3314R-2-103E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	10000 Ohms
Bourns Inc. 3314R-1-203E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	20 kOhms
Bourns Inc. 3314R-1-200E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	20 Ohms
Bourns Inc. 3314R-1-472E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	4.7 kOhms
Bourns Inc. 3314R-1-202E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	2 kOhms
Bourns Inc. 3314R-1-105E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	1 MOhms
Bourns Inc. 3314R-1-100E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	10 Ohms
Bourns Inc. 3314R-1-204E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	200000 Ohms
Bourns Inc. 3314R-1-101E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	100 Ohms
Bourns Inc. 3314R-1-501E	0.25 W	250 mW	Bottom Adjustment	Cermet	Surface Mount	100 ppm/°C	4.5 mm	0.177 in	0.177 "	4.5 mm	Gull Wing	20 %	1	500 Ohms
