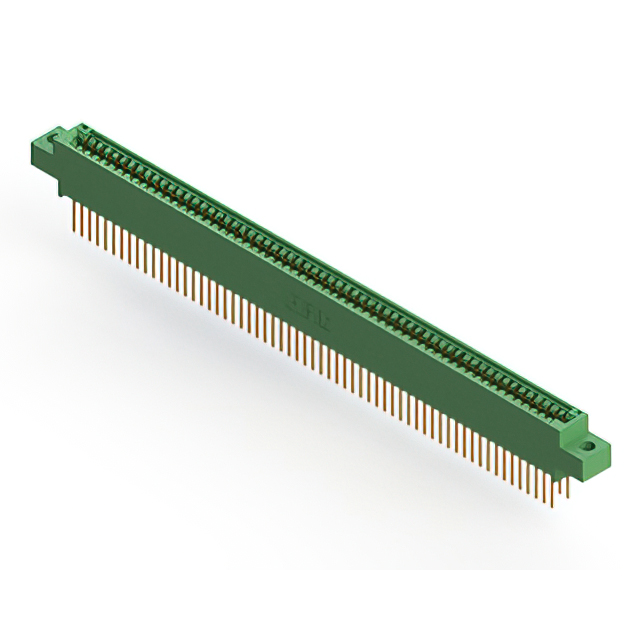

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 122 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-122-523-804
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 122 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-122-523-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 122 |
| Number of Positions/Bay/Row [custom] | 61 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-122 Series
...
| Part | Number of Rows | Material - Insulation | Card Type | Color | Pitch [x] | Pitch [x] | Gender | Contact Material | Read Out | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Termination Rows | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | M3 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Green | 2.54 mm | 0.1 in | Female | Copper Alloy | Dual | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Gold | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Cantilever | 122 | 2 | 61 | 10 Áin | 0.25 Ám | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-122 Series
122 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
