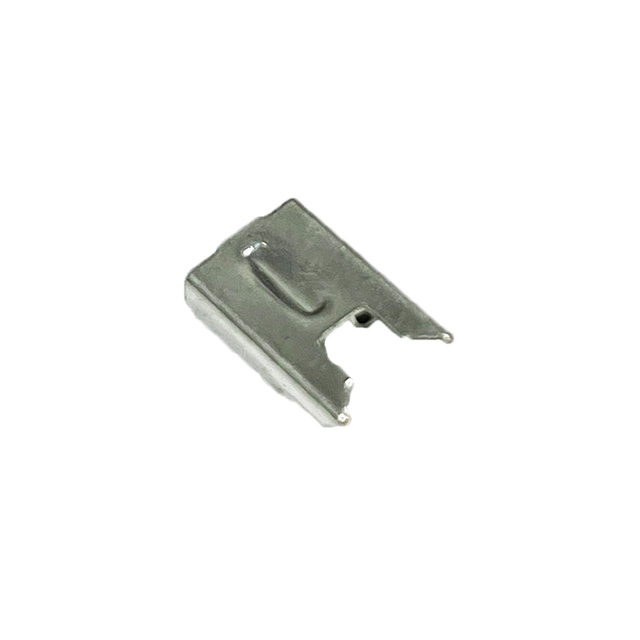

CNR-01-I
ActiveOptiFuse
REGULAR FUSE CLIP, 15A BRIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CNR-01-I
ActiveOptiFuse
REGULAR FUSE CLIP, 15A BRIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CNR-01-I |
|---|---|
| Contact Finish | Tin |
| Contact Material | Spring Bronze |
| Current Rating (Amps) | 15 A |
| For Use With/Related Products | APR, ANR |
| Fuse Size [x] | 19.1 mm |
| Fuse Size [x] | 0.75 " |
| Fuse Size [y] | 5.1 mm |
| Fuse Size [y] | 0.2 in |
| Fuse Type | Blade |
| Fuseholder Type | Clip |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
Description
General part information
CNR-01 Series
Fuse Clip 15 A 500V 1 Circuit Blade Through Hole
