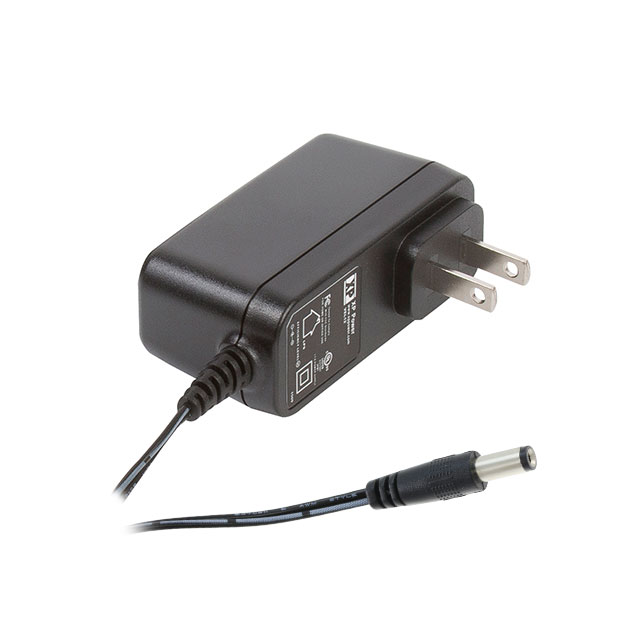

VEL12US120-US-JA

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 12V 12W

Search across all available documentation for this part.

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Part	Form	Cord Length	Cord Length	Operating Temperature [Max]	Efficiency	Voltage - Output	No Load Power Consumption	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Input Type	Current - Output (Max) [Max]	Weight	Weight	Approval Agency	Region Utilized	Applications	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
XP POWER VEL12US120-EU-JA	Wall Mount (Class II)	1.5 m	59 in	60 °C	CoC Tier 2 Level VI	12 V	100 mW	Positive Center	Barrel Plug	2.1 mm 5.5 mm	12 mm	62368-1	90 VAC	264 VAC	12 W	Fixed Blade	1 A	0.19 lb	86.18 g	CB	Europe	ITE (Commercial)	CEE 7/16	76 mm	57.6 mm	2.27 in	29.5 mm	2.99 in	1.16 "
XP POWER VEL12US120-US-JA	Wall Mount (Class II)	1.5 m	59 in	60 °C	CoC Tier 2 Level VI	12 V	100 mW	Positive Center	Barrel Plug	2.1 mm 5.5 mm	12 mm	62368-1	90 VAC	264 VAC	12 W	Fixed Blade	1 A	0.19 lb	86.18 g	CB TUV UL	North America	ITE (Commercial)	NEMA 1-15P	76 mm	43.9 mm	1.73 "	29.5 mm	2.99 in	1.16 "
XP POWER VEL12US090-UK-JA	Wall Mount (Class II)	1.5 m	59 in	60 °C	CoC Tier 2 Level VI	9 V	100 mW	Positive Center	Barrel Plug	2.1 mm 5.5 mm	12 mm	62368-1	90 VAC	264 VAC	12 W	Fixed Blade	1.28 A	0.19 lb	86.18 g	CB	United Kingdom	ITE (Commercial)	BS 1363	76 mm	46.4 mm	1.83 in	49.5 mm	2.99 in	1.95 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
