PE0612DKE7W0R01L

Active

YAGEO

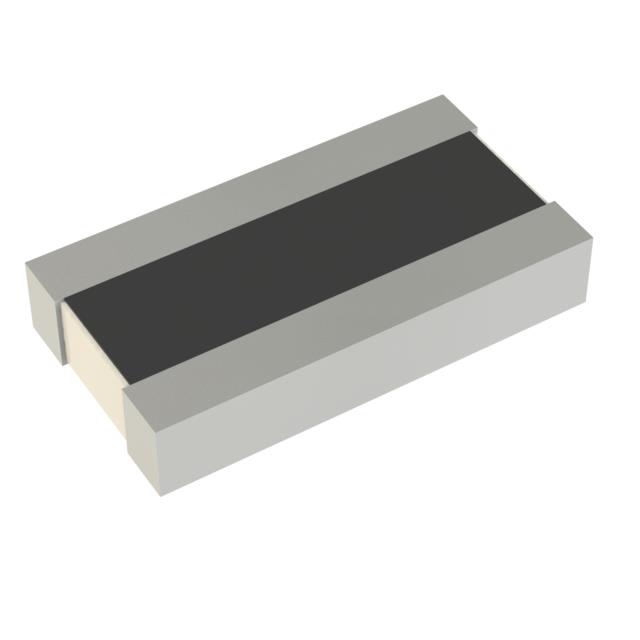

RES 0.01 OHM 0.5% 2W 1206 WIDE

Search across all available documentation for this part.

Active

YAGEO

RES 0.01 OHM 0.5% 2W 1206 WIDE

Technical Specifications

Parameters and characteristics for this part

Specification	PE0612DKE7W0R01L

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max] [z]	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Wide 1206 (3216 Metric), 0612
Power (Watts)	2 W
Ratings	AEC-Q200
Resistance	10 mOhms
Size / Dimension [x]	0.063 in, 1.6 mm
Size / Dimension [y]	0.126 in, 3.2 mm
Supplier Device Package	0612
Temperature Coefficient	50 ppm/°C

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Composition	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Features	Number of Terminations	Package / Case	Supplier Device Package	Resistance	Ratings
YAGEO PE0612DKE7W0R01L	0.03 in	0.75 mm	50 ppm/°C	Metal Element	2 W	155 °C	-55 °C	0.126 in 3.2 mm	0.063 in 1.6 mm	Automotive AEC-Q200 Current Sense	2	Wide 1206 (3216 Metric) 0612	0612	10 mOhms	AEC-Q200
YAGEO PE0612DKF070R02L	0.03 in	0.75 mm	100 ppm/°C	Metal Element	1 W	155 °C	-55 °C	0.126 in 3.2 mm	0.063 in 1.6 mm	Automotive AEC-Q200 Current Sense	2	Wide 1206 (3216 Metric) 0612	0612	0.02 Ohms	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.11

General part information

10 mOhms ±0.5% 2W Chip Resistor Wide 1206 (3216 Metric), 0612 Automotive AEC-Q200, Current Sense Metal Element
