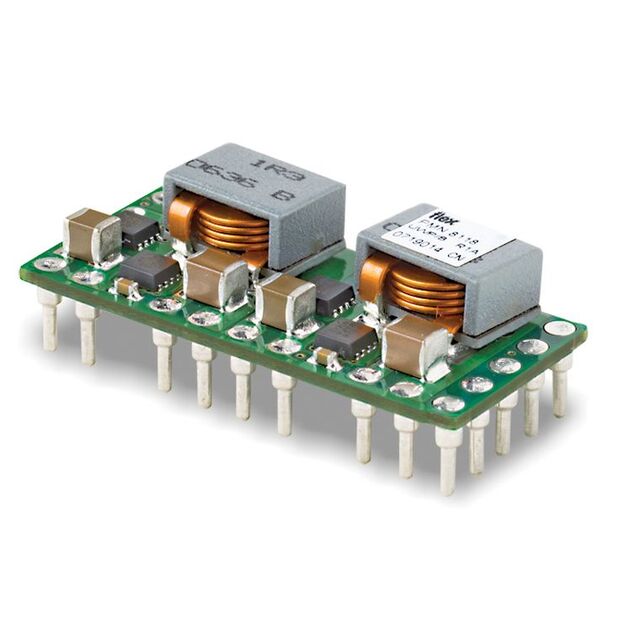

PMN8118UWP

LTB

Flex Power Modules

DC DC CONVERTER 0.7-3.6V 108W

Search across all available documentation for this part.

LTB

Flex Power Modules

DC DC CONVERTER 0.7-3.6V 108W

Technical Specifications

Parameters and characteristics for this part

Specification	PMN8118UWP

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	30 A
Efficiency	92.6 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module
Power (Watts)	108 W
Size / Dimension [x]	34.8 mm
Size / Dimension [x]	1.37 in
Size / Dimension [y]	15.8 mm
Size / Dimension [y]	0.62 "
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.33 in
Standard Number	62368-1
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	5.5 V
Voltage - Output 1 [Max]	3.6 V
Voltage - Output 1 [Min]	0.7 V

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Type	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Number of Outputs	Standard Number	Control Features	Applications
Flex Power Modules PMN8118UWSR	14-SMD Module	85 °C	-40 °C	3.6 V	0.7 V	5.5 V	14 V	92.6 %	Non-Isolated PoL Module	108 W	30 A	CB CSA IEC TUV UL	Surface Mount	8.5 mm	0.33 in	34.8 mm	15.8 mm	1.37 in	0.62 "	Adjustable Output Remote On/Off Remote Sense	1	62368-1	Active Low Enable	ITE (Commercial)
Flex Power Modules PMN8118UWP	14-DIP Module	85 °C	-40 °C	3.6 V	0.7 V	5.5 V	14 V	92.6 %	Non-Isolated PoL Module	108 W	30 A	CB CSA IEC TUV UL	Through Hole	8.5 mm	0.33 in	34.8 mm	15.8 mm	1.37 in	0.62 "	Adjustable Output Remote On/Off Remote Sense	1	62368-1	Active Low Enable	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	175	$ 20.58

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 3.6V 30A 5.5V - 14V Input
