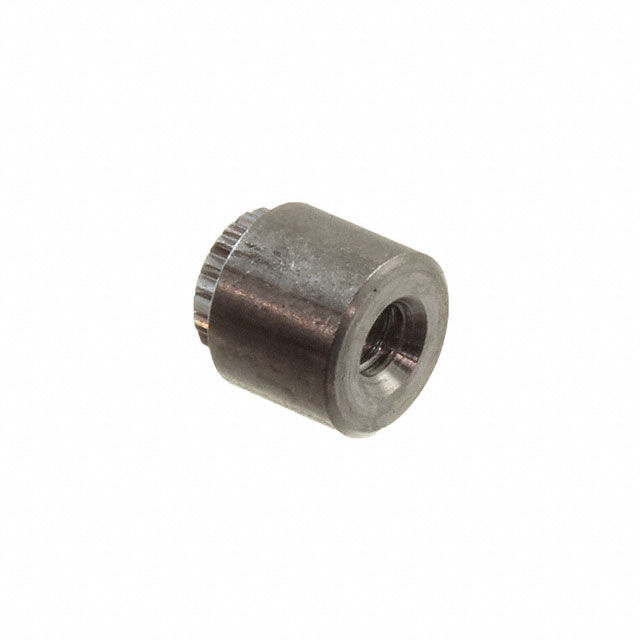

1001-050-SS-20
ActiveRAF Electronic Hardware
1/4OD X 6-32 THD
Deep-Dive with AI
Search across all available documentation for this part.
1001-050-SS-20
ActiveRAF Electronic Hardware
1/4OD X 6-32 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001-050-SS-20 |
|---|---|
| Between Board Height | 0.262 in |
| Between Board Height | 6.66 mm |
| Diameter - Inside [diameter] | 0.15 " |
| Diameter - Inside [diameter] | 3.81 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall | 7.94 mm |
| Length - Overall [x] | 0.313 in |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw, Thread Size | #6-32 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.96 | |
| 5 | $ 2.52 | |||
| 10 | $ 2.36 | |||
| 25 | $ 2.18 | |||
| 50 | $ 2.06 | |||
| 100 | $ 1.95 | |||
| 250 | $ 1.82 | |||
| 500 | $ 1.74 | |||
| 1000 | $ 1.67 | |||
Description
General part information
1001 Series
Round Standoff Threaded #6-32 Stainless Steel 0.262" (6.66mm)
Documents
Technical documentation and resources
No documents available
