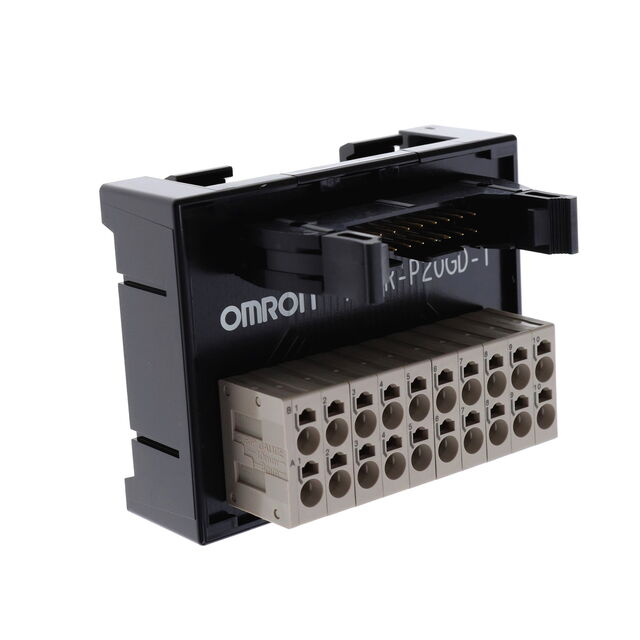

XW2R-P20GD-T

Active

Omron Electronics Inc-EMC Div

XW2R I/O TB SPRNG 20PT GEN DIN

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

XW2R I/O TB SPRNG 20PT GEN DIN

Technical Specifications

Parameters and characteristics for this part

Specification	XW2R-P20GD-T

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Rectangular
Control Side Connection [custom]	Female
Current Rating (Per Contact)	1 A
Length [x]	64.39 mm
Length [x]	2.535 "
Positions / Poles	20
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	125 VAC
Width [y]	50 mm
Width [y]	1.969 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	14 AWG

Part	Positions / Poles	Width [y]	Width [y]	Voltage - Rated	Wire Gauge [Max]	Wire Gauge [Min]	Control Side Cable Retainer	Current Rating (Per Contact)	Length [x]	Length [x]	Control Side Connection [custom]	Control Side Connection [custom]	Process Side Connection
Omron Electronics Inc-EMC Div XW2R-P20GD-T	20	50 mm	1.969 in	125 VAC	28 AWG	14 AWG	Latches	1 A	64.39 mm	2.535 "	Rectangular	Female	Terminal Blocks - Screw Connection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.48

General part information

20 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Female 14-28 AWG
