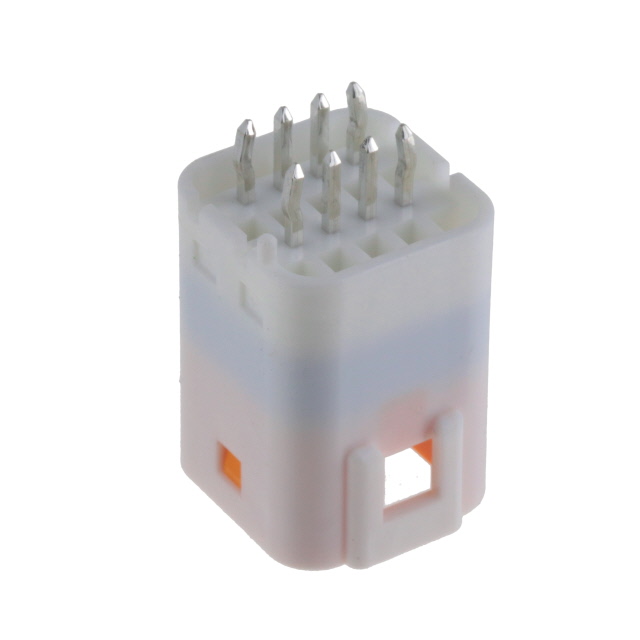

B08B-JWPF-SK-R

Active

JST Sales America Inc.

CONN HEADER VERT 8POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 8POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B08B-JWPF-SK-R

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Dust Tight, Waterproof
Insulation Color	Natural
Insulation Height	0.654 in
Insulation Height	16.61 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	21 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.157 in
Row Spacing - Mating	4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 V

Part	Style	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Post	Insulation Height	Insulation Height	Contact Material	Features	Ingress Protection	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Connector Type	Contact Shape	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Termination	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Mounting Type	Insulation Material	Contact Length - Post	Contact Length - Post	Fastening Type
JST Sales America Inc. B08B-JWPF-SK-R	Board to Cable/Wire	All	UL94 V-0	Tin	0.654 in	16.61 mm	Copper Alloy	Board Guide	Dust Tight Waterproof	21 mm	0.157 in	4 mm	8	Header	Square	3 A	100 V	85 °C	-55 °C	Male Pin	2	Kinked Pin Solder	Shrouded - 4 Wall	0.079 in	2 mm	Natural	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	0.13 in	3.3 mm	Latch Holder
