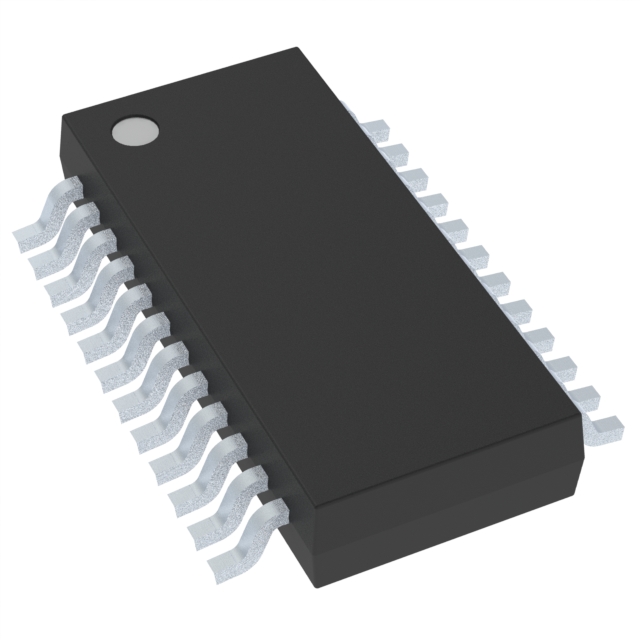

74ABT841PW,118

Obsolete

Freescale Semiconductor - NXP

IC 10BIT BUS INTFC LATCH 24TSSOP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC 10BIT BUS INTFC LATCH 24TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT841PW,118

Circuit	10:10
Current - Output High, Low [custom]	64 mA
Current - Output High, Low [custom]	32 mA
Delay Time - Propagation	4 ns
Independent Circuits	1
Logic Type	D-Type Transparent Latch
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Tri-State
Package / Case	24-TSSOP
Package / Case	0.173 in, 4.4 mm
Supplier Device Package	24-TSSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Independent Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Delay Time - Propagation	Logic Type	Circuit	Output Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case
Freescale Semiconductor - NXP 74ABT841DB,118	4.5 V	5.5 V	Surface Mount	24-SSOP	1	85 °C	-40 °C	4 ns	D-Type Transparent Latch	10:10	Tri-State	64 mA	32 mA	24-SSOP
Freescale Semiconductor - NXP 74ABT841DB,112	4.5 V	5.5 V	Surface Mount	24-SSOP	1	85 °C	-40 °C	4 ns	D-Type Transparent Latch	10:10	Tri-State	64 mA	32 mA	24-SSOP
Freescale Semiconductor - NXP 74ABT841PW,118	4.5 V	5.5 V	Surface Mount	24-TSSOP	1	85 °C	-40 °C	4 ns	D-Type Transparent Latch	10:10	Tri-State	64 mA	32 mA	24-TSSOP	0.173 in 4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

D-Type Transparent Latch 1 Channel 10:10 IC Tri-State 24-TSSOP
