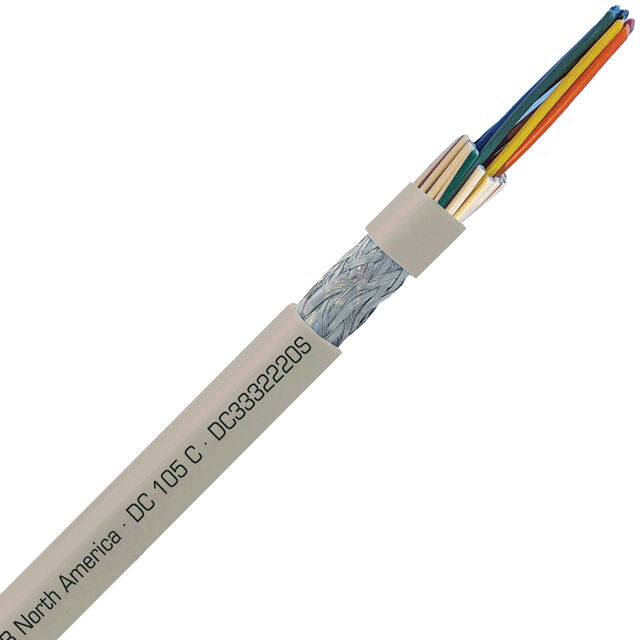

DC3332220S

Active

SAB North America

CABLE 20COND 22AWG GRY SHD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 20COND 22AWG GRY SHD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332220S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.371 in
Jacket (Insulation) Diameter [diameter]	9.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Conductor Insulation	Voltage	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Shield Type	Features	Length	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color
SAB North America DC3332220S	7	30 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	300 V	20	Poly-Vinyl Chloride (PVC)	22 AWG	Braid Foil	Drain Wire	Enter Number of Feet in Order Quantity	Multi-Conductor	-25 °C	105 ░C	Copper Tinned	0.371 in	9.42 mm	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
