R404132000

Active

Radiall USA, Inc.

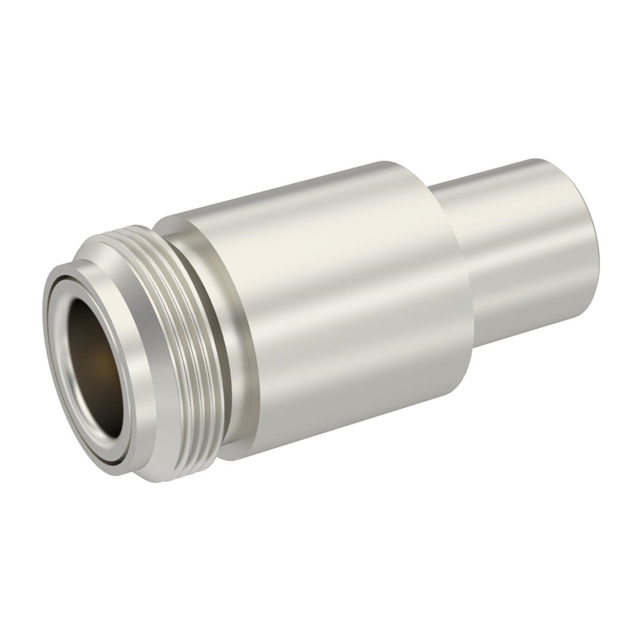

TERMINATION: N F 4GHZ 1W 50OHMS

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: N F 4GHZ 1W 50OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	R404132000

Body Finish	Nickel
Body Material	Brass
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Material	Contact Material	Frequency - Max [Max]	Connector Type	Impedance	Connector Style	Contact Finish	Mounting Type	Dielectric Material	Body Finish
Radiall USA, Inc. R404131000	Brass	Brass	4 GHz	Male Pin Plug	50 Ohms	N Type	Gold	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	Nickel
Radiall USA, Inc. R404132000	Brass	Beryllium Copper	4 GHz	Female Socket Jack	50 Ohms	N Type	Gold	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 116.93

General part information

Terminator Coax Connector Jack, Female Socket N Type 50 Ohms

Technical documentation and resources

No documents available
