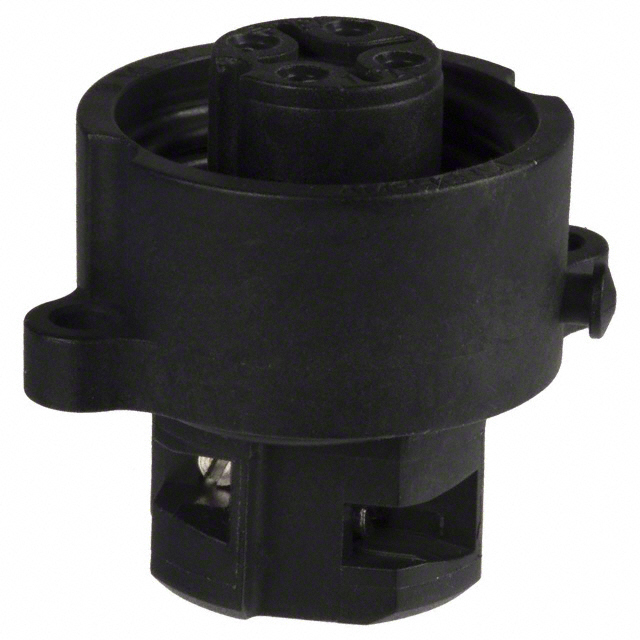

C01620G00310012
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 4P SILVER SCREW
Deep-Dive with AI
Search across all available documentation for this part.
C01620G00310012
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 4P SILVER SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C01620G00310012 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 16 A |
| Ingress Protection | IP67, IP65 |
| Number of Positions | 4 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Termination | Screw |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.24 | |
| 10 | $ 10.12 | |||
| 25 | $ 9.53 | |||
| 50 | $ 9.29 | |||
| 100 | $ 9.04 | |||
| 250 | $ 8.07 | |||
| 500 | $ 7.58 | |||
Description
General part information
C01620G003 Series
4 Position Circular Connector Receptacle, Female Sockets Screw
Documents
Technical documentation and resources
