85-500A-4C
ActiveTE Connectivity Measurement Specialties

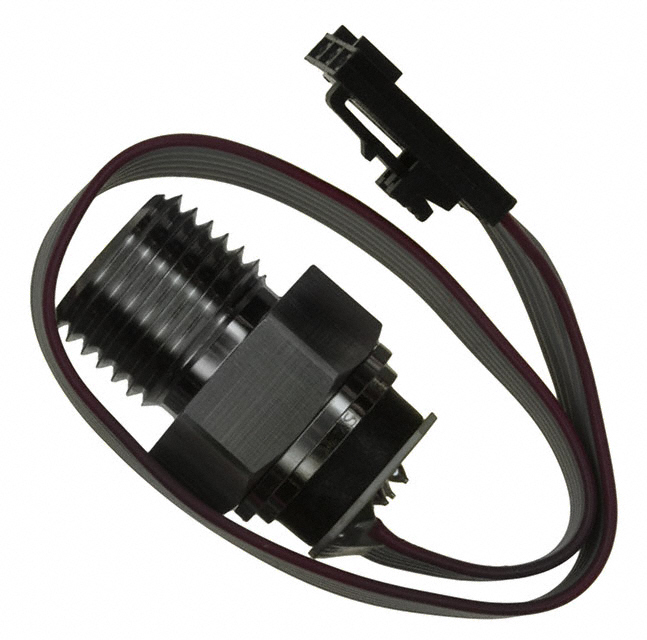

SENSOR 500PSIA 1/4NPT RIB W/CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 85-500A-4C |
|---|---|
| Accuracy | 0.1 % |
| Features | Temperature Compensated |
| Maximum Pressure | 1500 PSI |
| Maximum Pressure | 10342.14 kPa |
| Operating Pressure | 3447.38 kPa |
| Operating Pressure | 500 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | Cylinder |
| Port Style | No Port |
| Termination Style | Cable with Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 60 | $ 90.29 | |
Description
General part information
85-500 Series
Pressure Sensor 500PSI (3447.38kPa) Absolute 0 mV ~ 100 mV Cylinder
Documents
Technical documentation and resources
