FSG.0B.302.CLAD52

Active

LEMO

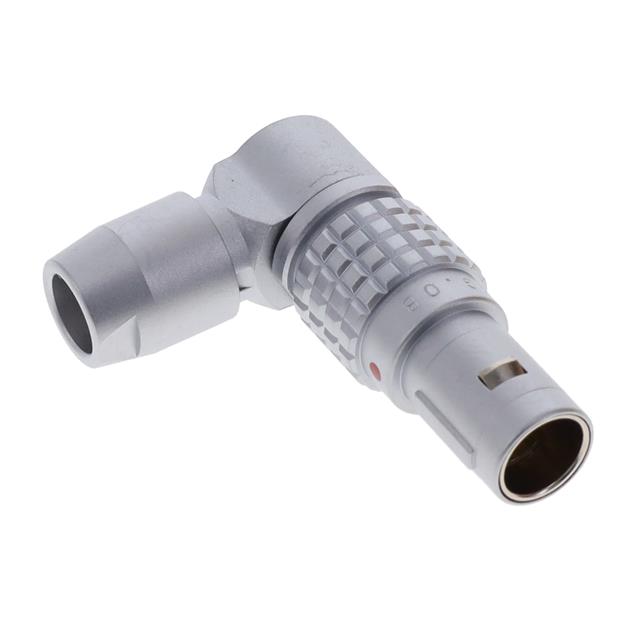

CONN PLUG FEMALE 2P RA SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FEMALE 2P RA SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FSG.0B.302.CLAD52

Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	0.205 in, 0.165 in
Cable Opening [diameter]	4.2 mm
Cable Opening [diameter]	5.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	302
Shielding	Shielded

Part	Orientation	Ingress Protection	Shell Size - Insert	Current Rating (Amps)	Primary Material	Mounting Type	Fastening Type	Color	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Number of Positions	Insert Material	Shell Material	Shell Finish	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Mating	Backshell Material, Plating	Connector Type	Features
LEMO FSG.0B.302.CLAD52	G	IP50	302	10 A	Metal	Free Hanging (In-Line) Right Angle	Detent Lock Push-Pull	Silver	0.165 in 0.205 in	4.2 mm	5.2 mm	UL94 V-0	2	Polyetheretherketone (PEEK)	Brass	Chrome	Shielded	-55 °C	200 °C	Brass	Gold	Brass Chrome	Male Pins Plug	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup
