C3PPS-5018M

Active

CW Industries

IDC CABLE - CPC50S/AE50M/CPC50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CPC50S/AE50M/CPC50S

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Usage	Cable Termination	Length [x]	Length [x]	Shielding	Number of Positions	Contact Finish	Pitch - Cable	Pitch - Cable	Connector Type	Length	Length	Length	Color
CW Industries C3PPS-5036G	2.54 µm	100 µin	0.05 in	1.27 mm	Board In	IDC	3 ft	914.4 mm	Unshielded	50	Tin-Lead	0.05 "	1.27 mm	PCB to PCB
CW Industries C3PPS-5006G	2.54 µm	100 µin	0.05 in	1.27 mm	Board In	IDC			Unshielded	50	Tin-Lead	0.05 "	1.27 mm	PCB to PCB	152.4 mm	6 "	0.5 '
CW Industries C3PPS-5018M	2.54 µm	100 µin	0.05 in	1.27 mm	Board In	IDC	1.5 ft	457.2 mm	Unshielded	50	Tin-Lead	0.05 "	1.27 mm	PCB to PCB				Multiple Ribbon
CW Industries C3PPS-5006M	2.54 µm	100 µin	0.05 in	1.27 mm	Board In	IDC			Unshielded	50	Tin-Lead	0.05 "	1.27 mm	PCB to PCB	152.4 mm	6 "	0.5 '	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

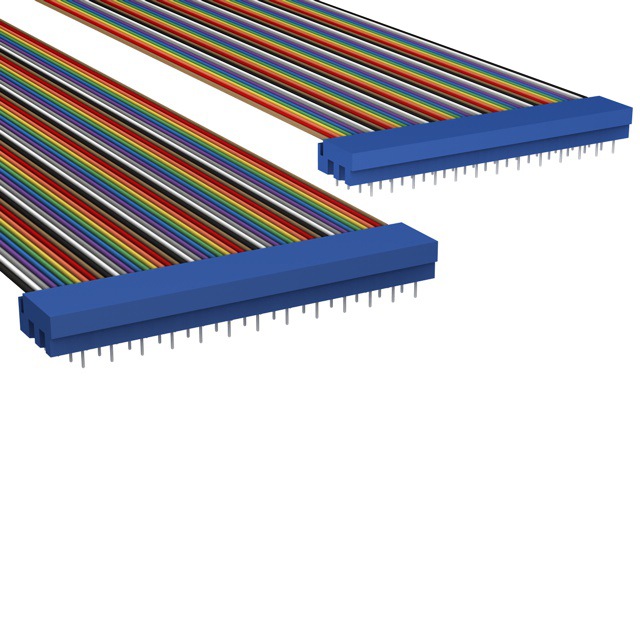

50 Position Cable Assembly Rectangular PCB to PCB 1.50' (457.20mm)
