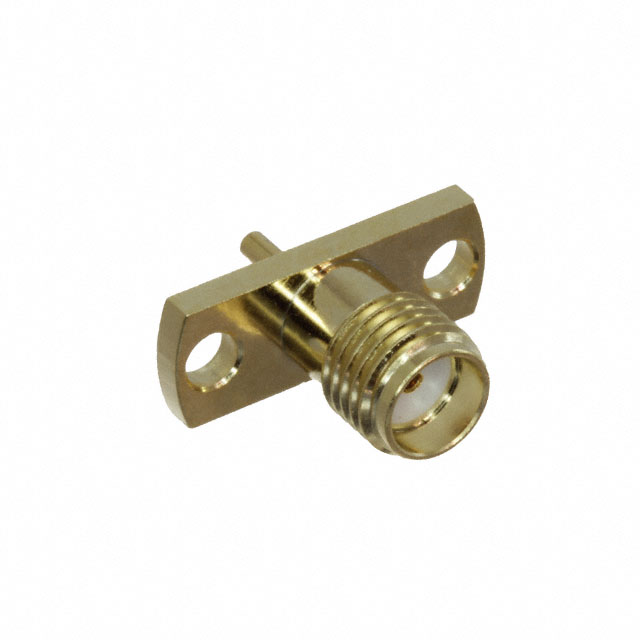

RF2-44A-T-00-50-G

Active

Adam Tech

RF SMA CONNECTOR

Search across all available documentation for this part.

Active

Adam Tech

RF SMA CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	RF2-44A-T-00-50-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Code A
Frequency - Max [Max]	18 GHz
Housing Color	White
Impedance	50 Ohms
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Mounting Feature	Center Contact Plating	Frequency - Max [Max]	Connector Style	Housing Color	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Features	Impedance	Center Contact Material	Shield Termination	Mounting Type	Voltage Rating	Number of Ports	Body Finish	Body Material
Adam Tech RF2-44B-T-00-50-G	Flange	Gold	18 GHz	SMA	White	Solder Cup	Female Socket Jack	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Code B	50 Ohms	Brass	Solder	Panel Mount Through Hole	335 V	1	Gold	Brass
Adam Tech RF2-44A-T-00-50-G	Flange	Gold	18 GHz	SMA	White	Solder	Female Socket Jack	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Code A	50 Ohms	Brass	Solder	Panel Mount Through Hole	335 V	1	Gold	Brass
