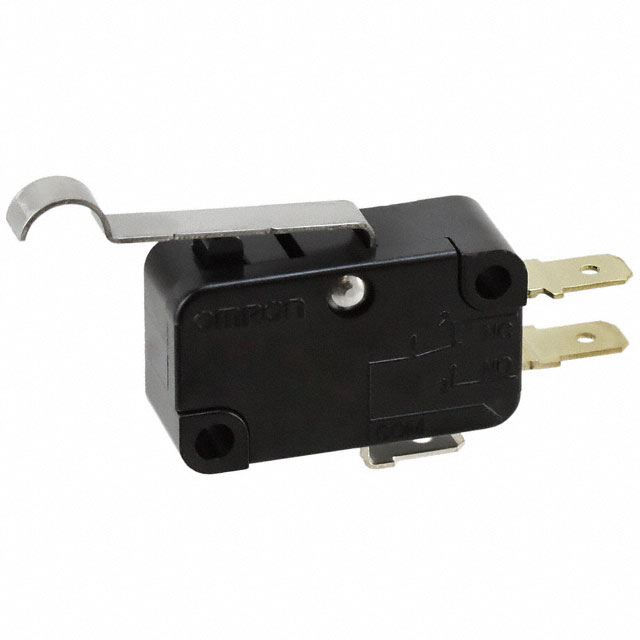

V-154-1C25-T

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Operating Position	Operating Position	Termination Style	Termination Style	Mounting Type	Voltage Rating - AC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Overtravel	Overtravel	Ingress Protection	Mechanical Life	Electrical Life	Circuit	Actuator Type	Differential Travel	Differential Travel	Operating Force	Release Force	Current Rating (Amps)	Operating Position [custom]
Omron Electronics Inc-EMC Div V-154-1A5-T	4 mm	0.157 in	0.579 in	14.7 mm	Quick Connect Solder	0.187 in 4.7 mm	Chassis Mount	250 V	On-Mom	150 °C	-25 °C	125 VDC	1.6 mm	0.062 in	IP40	50000000 Cycles	200000 Cycles	SPDT	Lever Simulated Roller	1.5 mm	0.06 "	125 gf	14 gf	15 A 600 mA
Omron Electronics Inc-EMC Div V-154-2A5	4 mm	0.157 in		18.7 mm	Quick Connect Solder	0.187 in 4.7 mm	Chassis Mount	250 V	On-Mom	80 C	-25 °C	125 VDC	1.6 mm	0.062 in	IP40	50000000 Cycles	100000 Cycles	SPST-NC	Lever Simulated Roller	1.5 mm	0.06 "	125 gf	14 gf	15 A 600 mA	0.738 in
Omron Electronics Inc-EMC Div V-154-1C25-T	4 mm	0.157 in			Quick Connect - 0.187" (4.7mm)		Chassis Mount	250 V	On-Mom	150 °C	-25 °C	125 VDC	1.6 mm	0.062 in	IP40			SPDT	Lever Simulated Roller	1.5 mm	0.06 "	125 gf	14 gf	15 A 600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.95

General part information

Switch SPDT Chassis Mount
