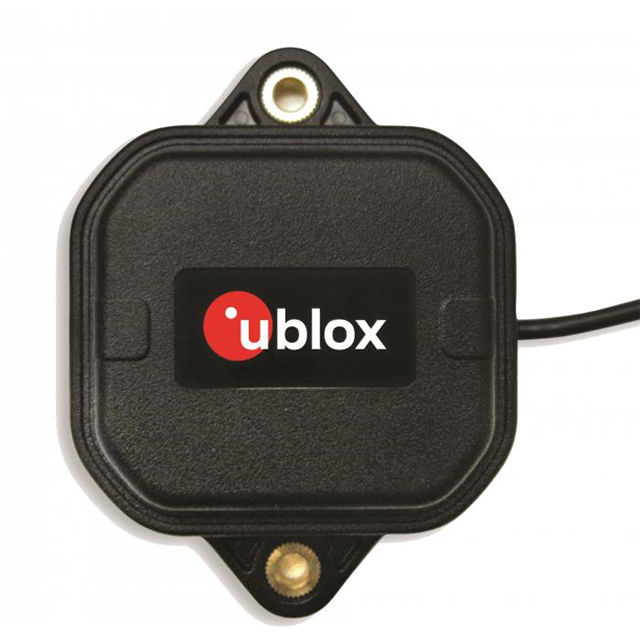

ANN-MB-00

Active

u-blox

RF ANT GNSS/GPS 1.197-1.249GHZ

Search across all available documentation for this part.

Active

u-blox

RF ANT GNSS/GPS 1.197-1.249GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	ANN-MB-00

Antenna Type	Module
Applications	GLONASS, GPS, GNSS, Beidou, Galileo
Features	LNA, Cable - 5m
Frequency (Center/Band)	1.223 GHz, 1.582 GHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Frequency Range [Max]	1.249 GHz, 1.606 GHz
Frequency Range [Min]	1.559 GHz, 1.197 GHz
Gain	28 dBi
Height (Max) [Max] [z]	0.886 in
Height (Max) [Max] [z]	22.5 mm
Mounting Type	Magnetic
Number of Bands	2
RF Family/Standard	Navigation
Termination	SMA
VSWR	2

Part	Termination	Frequency (Center/Band)	Antenna Type	Mounting Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Applications	Number of Bands	Features	RF Family/Standard	Frequency Range [Min]	Frequency Range [Max]	Gain	VSWR	Height (Max) [Max] [z]	Height (Max) [Max] [z]
u-blox ANN-MB-02	MCX	1.223 GHz 1.582 GHz	Module	Magnetic	2 GHz	1 GHz	UHF	Beidou Galileo GLONASS GNSS GPS	2	Cable - 5m LNA	Navigation	1.197 GHz 1.559 GHz	1.249 GHz 1.606 GHz	28 dBi	2	0.886 in	22.5 mm
u-blox ANN-MB-00	SMA	1.223 GHz 1.582 GHz	Module	Magnetic	2 GHz	1 GHz	UHF	Beidou Galileo GLONASS GNSS GPS	2	Cable - 5m LNA	Navigation	1.197 GHz 1.559 GHz	1.249 GHz 1.606 GHz	28 dBi	2	0.886 in	22.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Module SMA Magnetic
