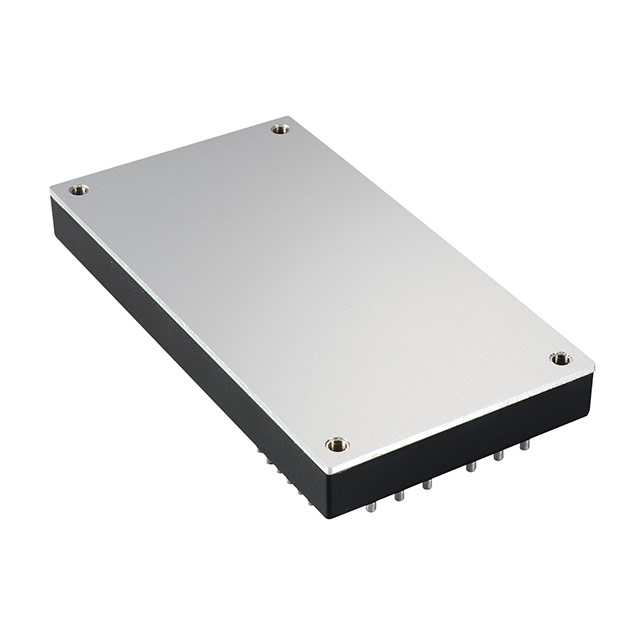

QSB40024S48P

Active

XP POWER

DC DC CONVERTER 48V 398W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 48V 398W

Technical Specifications

Parameters and characteristics for this part

Specification	QSB40024S48P

Applications	ITE (Commercial)
Current - Output (Max) [Max]	8.3 A
Efficiency	86.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Full Brick
Power (Watts)	398 W
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Supplier Device Package	Full Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	48 V

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Control Features	Type	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Isolation	Features	Number of Outputs	Supplier Device Package
XP POWER QSB40024S05	80 A	9 V	400 W	36 V	Active High Enable	Isolated Module	16-DIP Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	87.5 %	5 V	100 °C	-40 °C	Through Hole	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP	1
XP POWER QSB40024S28	14.3 A	9 V	400 W	36 V	Active High Enable	Isolated Module	16-DIP Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	87 %	28 V	100 °C	-40 °C	Through Hole	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP	1
XP POWER QSB40024S48P	8.3 A	9 V	398 W	36 V		Isolated Module	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	86.5 %	48 V	100 °C	-40 °C	Through Hole	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	1	Full Brick
XP POWER QSB40024S48	8.3 A	9 V	400 W	36 V	Active High Enable	Isolated Module	16-DIP Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	86.5 %	48 V	100 °C	-40 °C	Through Hole	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 48V 8.3A 9V - 36V Input
