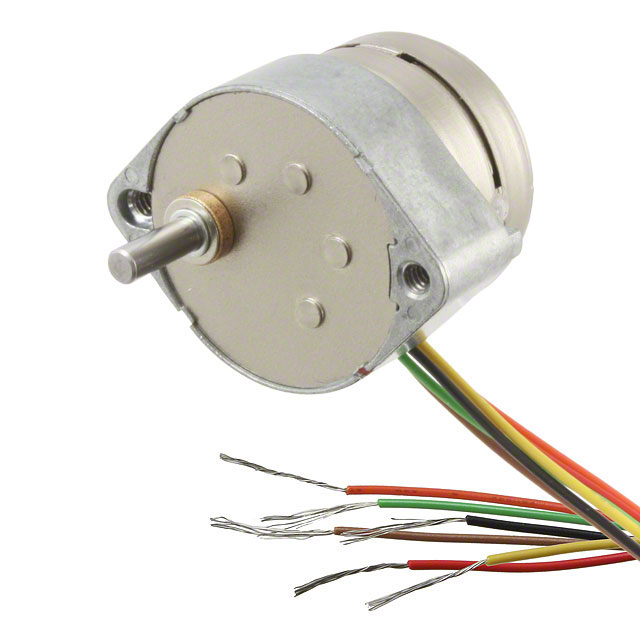

26M048B2U-V31
ActivePortescap
STEPPER MOTOR PM GEARED UNI 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 26M048B2U-V31 |
|---|---|
| Coil Resistance | 110 Ohms |
| Coil Type | Unipolar |
| Current Rating (Amps) | 110 mA |
| Diameter - Shaft [diameter] | 0.125 in |
| Diameter - Shaft [diameter] | 3.18 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.432 in |
| Length - Shaft and Bearing [x] | 10.97 mm |
| Mounting Hole Spacing | 1.18 in |
| Mounting Hole Spacing | 29.87 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 1.1 gcm˛ |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 1.03 in, 26.16 mm |
| Step Angle | 0.25 ° |
| Steps per Revolution | 1440 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 9.2 mNm |
| Torque - Holding (oz-in / mNm) | 1.3 oz-in |
| Type | Permanent Magnet Gear Motor |
| Voltage - Rated | 12 VDC |
| Weight | 0.126 lb |
| Weight | 57.15 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
26M048 Series
Unipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 1440.0 Step 110 mA 12VDC
