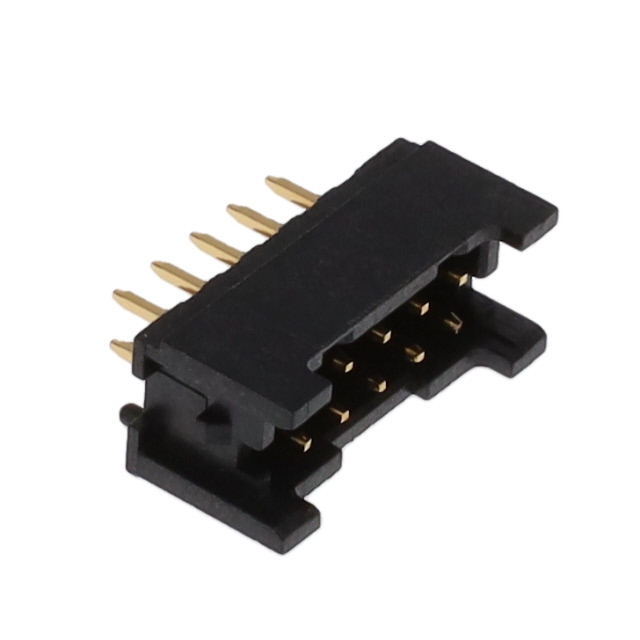

G861B10212T9P1HR

Active

Amphenol ICC (Commercial Products)

PROTECT HEADER 2.0MM PITCH STR,2

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

PROTECT HEADER 2.0MM PITCH STR,2

Technical Specifications

Parameters and characteristics for this part

Specification	G861B10212T9P1HR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Polyamide (PA4T), Nylon 4T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Shrouding	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Contact Material	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Mating	Material Flammability Rating	Contact Shape	Insulation Color	Number of Positions	Number of Rows	Insulation Material	Connector Type	Features	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Style
Amphenol ICC (Commercial Products) G861B10212T9P1HR	Shrouded - 4 Wall	Locking Ramp	15 µin	0.38 µm	All	Solder	Copper Alloy	Through Hole	6.5 mm	0.256 in	Gold	UL94 V-0	Square	Black	20	2	Polyamide (PA4T) Nylon 4T	Header	Board Guide	Male Pin	0.079 in	2 mm	0.118 in	3 mm	0.079 in	2 mm	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 20 position 0.079" (2.00mm)
