Q-3B01J0003012I

Active

Amphenol Custom Cable

COAX CBL SMA TO MMCX 12"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO MMCX 12"

Technical Specifications

Parameters and characteristics for this part

Part	Cable Type	1st Connector Mounting Type	Style	Overall Impedance	Color	Features	1st Contact Gender	Connector Impedance	2nd Connector	2nd Connector Mounting Type	1st Connector	Cable Impedance	Frequency - Max [Max]	2nd Contact Gender	Length	Length	Length
Amphenol Custom Cable Q-3B01J0003012I	RG-174	Free Hanging (In-Line)	SMA to MMCX	50 Ohms	Black	Shielded	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	SMA Plug	50 Ohms	1 GHz	Female	12 "	304.8 mm
Amphenol Custom Cable Q-3B01J0003024I	RG-174	Free Hanging (In-Line)	SMA to MMCX	50 Ohms	Black	Shielded	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	SMA Plug	50 Ohms	1 GHz	Female	24 "	609.6 mm
Amphenol Custom Cable Q-3B01J0003084I	RG-174	Free Hanging (In-Line)	SMA to MMCX	50 Ohms	Black	Shielded	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	SMA Plug	50 Ohms	1 GHz	Female	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-3B01J0003072I	RG-174	Free Hanging (In-Line)	SMA to MMCX	50 Ohms	Black	Shielded	Male	50 Ohms	MMCX Jack	Free Hanging (In-Line)	SMA Plug	50 Ohms	1 GHz	Female	72 in	1.8 m	6 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

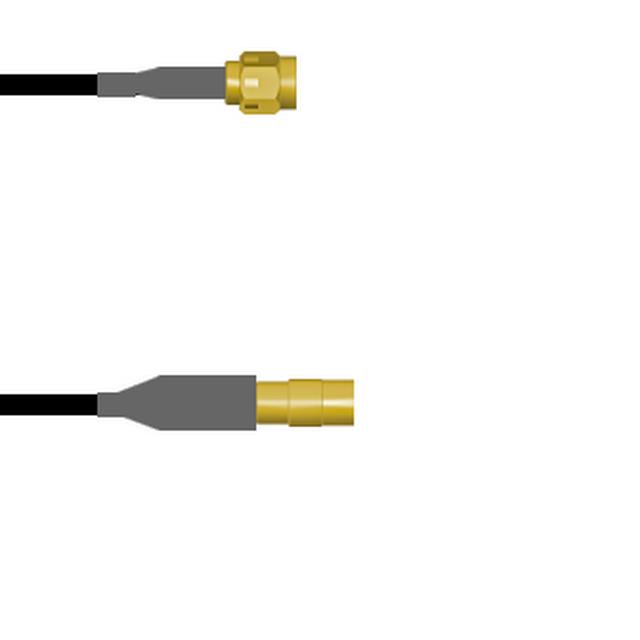

Cable Assembly Coaxial SMA to MMCX RG-174 12.00" (304.80mm)

Technical documentation and resources

No documents available
