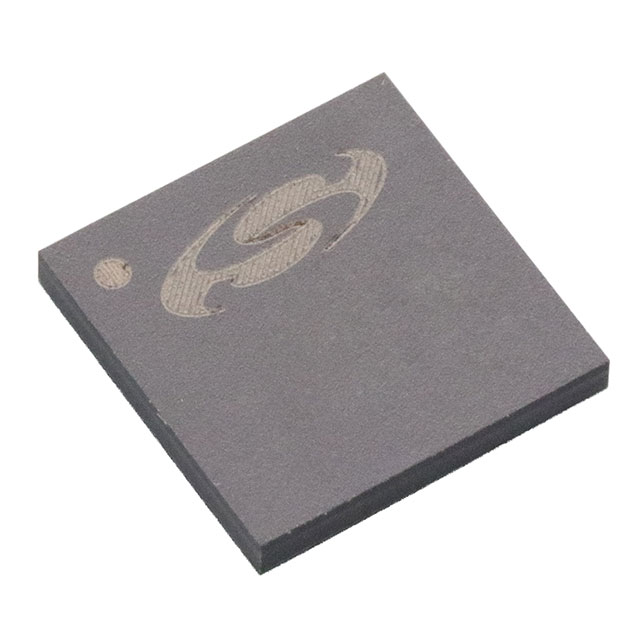

ZGM130S037HGN2R

Active

Silicon Labs

RF TXRX MOD ISM<1GHZSMD

Search across all available documentation for this part.

Active

Silicon Labs

RF TXRX MOD ISM<1GHZSMD

Technical Specifications

Parameters and characteristics for this part

Specification	ZGM130S037HGN2R

Antenna Type	Antenna Not Included
Current - Receiving [Max]	9.9 mA
Current - Receiving [Min]	9.5 mA
Current - Transmitting [Max]	40.7 mA
Current - Transmitting [Min]	13.3 mA
Data Rate	100 Kbps
Frequency [Max]	876 MHz, 930 MHz
Frequency [Min]	902 MHz, 863 MHz
Modulation	GFSK, 2FSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	64-LFLGA
Power - Output	13 dBm
Protocol	Z-Wave®
RF Family/Standard	General ISM < 1GHz
Sensitivity	-102.6 dBm
Serial Interfaces	I2C, I2S, SPI, GPIO, UART, IrDA, PWM, ADC
Utilized IC / Part	ZGM130S
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.8 V

Part	Frequency [Min]	Frequency [Max]	Mounting Type	Serial Interfaces	Current - Transmitting [Min]	Current - Transmitting [Max]	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Modulation	Utilized IC / Part	Antenna Type	Sensitivity	Protocol	Current - Receiving [Min]	Current - Receiving [Max]	Package / Case	RF Family/Standard	Voltage - Supply [Min]	Voltage - Supply [Max]
Silicon Labs ZGM130S037HGN2R	863 MHz 902 MHz	876 MHz 930 MHz	Surface Mount	ADC GPIO I2C I2S IrDA PWM SPI UART	13.3 mA	40.7 mA	13 dBm	85 °C	-40 °C	100 Kbps	2FSK GFSK	ZGM130S	Antenna Not Included	-102.6 dBm	Z-Wave®	9.5 mA	9.9 mA	64-LFLGA	General ISM < 1GHz	1.8 V	3.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM < 1GHz Z-Wave® Transceiver Module 863MHz ~ 876MHz, 902MHz ~ 930MHz Antenna Not Included Surface Mount
