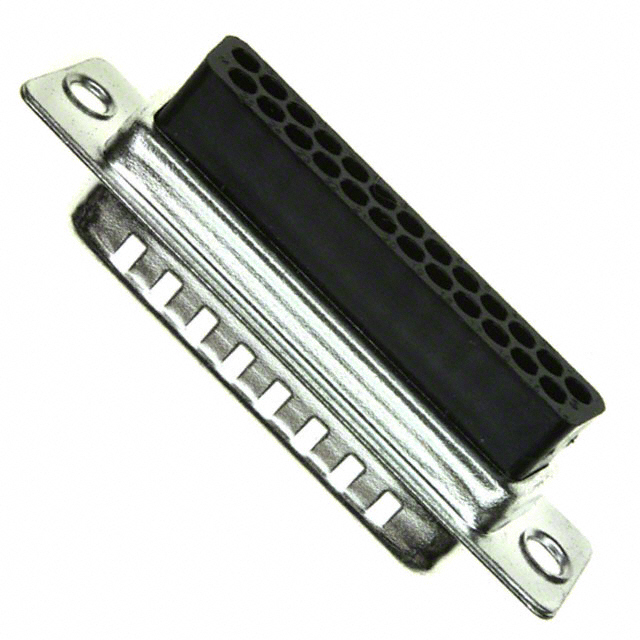

L777-RR-B-25-P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING PLUG 25POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L777-RR-B-25-P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING PLUG 25POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L777-RR-B-25-P |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.99 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
| 2500 | $ 0.41 | |||
Description
General part information
L777RRB25 Series
Plug for Male Contacts Housing D-Sub Connector 25 Position
