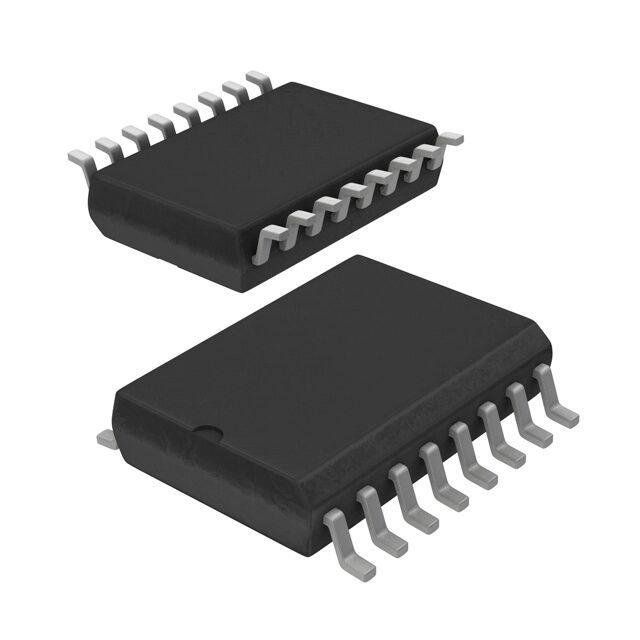

ACS71020KMABTR-015B5-SPI
Allegro MicroSystems
SINGLE PHASE, ISOLATED, POWER MO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACS71020KMABTR-015B5-SPI
Allegro MicroSystems
SINGLE PHASE, ISOLATED, POWER MO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACS71020KMABTR-015B5-SPI |
|---|---|
| Applications | ACDC Switching Power Supplies, Controller |
| Current - Supply | 12 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Supplier Device Package | 16-SOIC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.84 | |
| 5 | $ 5.26 | |||
| 10 | $ 5.04 | |||
| 25 | $ 4.78 | |||
| 50 | $ 4.60 | |||
| 100 | $ 4.44 | |||
| 500 | $ 4.11 | |||
| Digi-Reel® | 1 | $ 5.84 | ||
| 5 | $ 5.26 | |||
| 10 | $ 5.04 | |||
| 25 | $ 4.78 | |||
| 50 | $ 4.60 | |||
| 100 | $ 4.44 | |||
| 500 | $ 4.11 | |||
| Tape & Reel (TR) | 1000 | $ 3.99 | ||
| 2000 | $ 3.88 | |||
Description
General part information
ACS71020 Series
Controller, ACDC Switching Power Supplies PMIC 16-SOIC
Documents
Technical documentation and resources
