TF-782 PL/UNPD
ActiveLMB Heeger Inc.

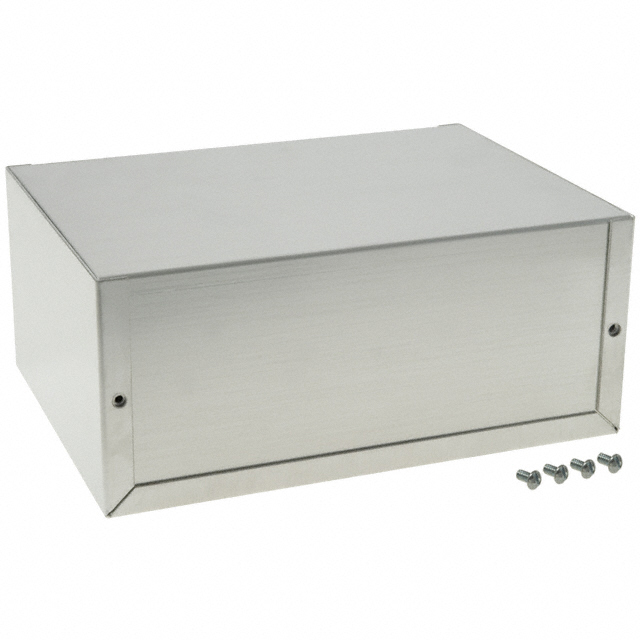

CHASSIS ALUM UNPAINTED 7"L X 5"W
Deep-Dive with AI
Search across all available documentation for this part.
TF-782 PL/UNPD
ActiveLMB Heeger Inc.
CHASSIS ALUM UNPAINTED 7"L X 5"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TF-782 PL/UNPD |
|---|---|
| Area (L x W) [custom] | 35 in² |
| Area (L x W) [custom] | 226 cm² |
| Color | Unpainted |
| Container Type | Chassis |
| Design | U Shaped Pieces |
| Height [z] | 76.2 mm |
| Height [z] | 3 in |
| Material | Metal, Aluminum |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [x] | 7 " |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Thickness | 0.04 in |
| Thickness | 1.02 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.43 | |
| 5 | $ 21.74 | |||
| 10 | $ 20.32 | |||
| 25 | $ 18.58 | |||
| 50 | $ 17.37 | |||
| 100 | $ 16.93 | |||
Description
General part information
TF-782 Series
Chassis Metal, Aluminum Unpainted U Shaped Pieces 7.000" L x 5.000" W (177.80mm x 127.00mm) X 3.000" (76.20mm)
Documents
Technical documentation and resources
No documents available
